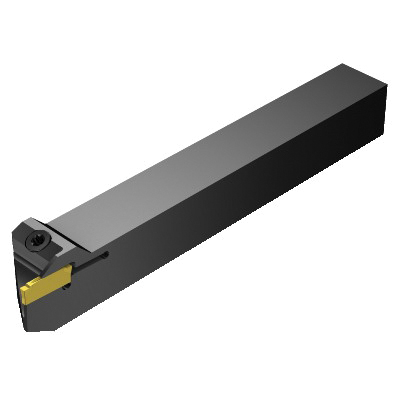

Sandvik Coromant 5856755 CoroCut® 1-2 Indexable Shank Tool, N123E2-0200-0002-CM insert, E Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5856755 CoroCut® 1-2 Indexable Shank Tool, N123E2-0200-0002-CM insert, E Insert Seat, Left Hand
SKU1254561
MFGR #5856755
Your Cost: $261.98/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123E2-0200-0002-CM, LF123E043-10B-S, 5 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, E Insert Seat, Left Hand Cutting, 0.43 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123E2-0200-0002-CM, LF123E043-10B-S, 5 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, E Insert Seat, Left Hand Cutting, 0.43 in Maximum Depth of Cut, Steel
Alternate Catalog Number LF123E043-10B-S Catalog Number 5856755 Country of Origin IN Finish Rectangular Geometry LF123E043-10B-S Gross Weight Per Pack 0.5100 lb Head Length Left Hand Internal or External External Item Group 480 Material Steel Minimum Groove Width Indexable Series CoroCut® 1-2 Shank Length N123E2-0200- CM Toolholder Type R/LF123..B-S Type Indexable UPC 11 69826251452 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Insert Compatibility N123E2-0200-0002-CM Insert Seat Size E Maximum Depth of Cut 0.43 in Overall Length 5 in Screw Type 0.625 Shank Size 5/8 in H x 5/8 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 21.844 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 22.522 mm minimum overhang 2.5 Nm torque 0 deg inclination 0 deg rake ANSI Code: LF123E043-10B-S ISO Code: LF123E043-10B-S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123E043-10B-S |
| Catalog Number | 5856755 |
| Country of Origin | IN |
| Finish | Rectangular |
| Geometry | LF123E043-10B-S |
| Gross Weight Per Pack | 0.5100 lb |
| Head Length | Left Hand |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Minimum Groove Width | Indexable |
| Series | CoroCut® 1-2 |
| Shank Length | N123E2-0200- CM |
| Toolholder Type | R/LF123..B-S |
| Type | Indexable |
| UPC 11 | 69826251452 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123E2-0200-0002-CM |
| Insert Seat Size | E |
| Maximum Depth of Cut | 0.43 in |
| Overall Length | 5 in |
| Screw Type | 0.625 |
| Shank Size | 5/8 in H x 5/8 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 21.844 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 22.522 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: LF123E043-10B-S |
| ISO Code: LF123E043-10B-S |
