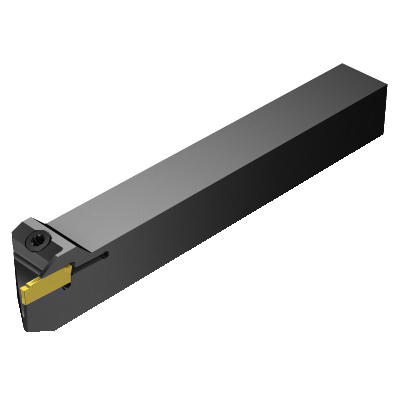

Sandvik Coromant 5856748 CoroCut® 1-2 Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Right Hand
Indexable Grooving/Cut-Off Tool Holders
1246376
MFG #: 5856748
Sandvik Coromant
205.30000
/ ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123D2-0150-0002-CM, RF123D067-10B-S, 5 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, D Insert Seat, Right Hand Cutting, 0.67 in Maximum Depth of Cut, Steel
- Features
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 34.036 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 28.618 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: RF123D067-10B-S |
| ISO Code: RF123D067-10B-S |
