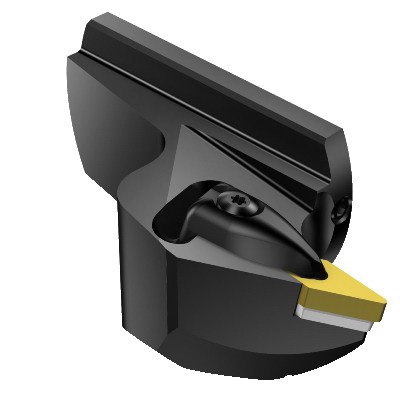

Sandvik Coromant 5856125 T-Max® P SL Screw Mount, 3.937 in Bore, Right Hand, VNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5856125 T-Max® P SL Screw Mount, 3.937 in Bore, Right Hand, VNMG Insert
SKU1252288
MFGR #5856125
Your Cost: $1,036.30/ea
Sandvik Coromant Back Boring Head, SL Screw Mount, Series: T-Max® P, 3.937 in Bore Dia, 3.1496 in Head Dia, 0.7874 in Head Length/Projection, Right Hand Cutting, VNMG Insert, Insert Compatibility: VNMG 16 04 08, 2.5196 in Center to Cutting Edge, Steel
Sandvik Coromant Back Boring Head, SL Screw Mount, Series: T-Max® P, 3.937 in Bore Dia, 3.1496 in Head Dia, 0.7874 in Head Length/Projection, Right Hand Cutting, VNMG Insert, Insert Compatibility: VNMG 16 04 08, 2.5196 in Center to Cutting Edge, Steel
Alternate Catalog Number 570-DVUNR-80-16X Bore Diameter 3.937 in Catalog Number 5856125 Center to Cutting Edge 2.5196 in Country of Origin NO Finish 400 Gross Weight Per Pack 0.4200 lb Head Diameter 3.1496 in Item Group 410 Master Insert VNMG 16 04 08 Series T-Max® P Torque Newton Meters 3 Type SL Screw Mount UPC 11 69826252655 Warranty SL, Screw Mounted Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Head Length|Projection 0.7874 in Insert Compatibility VNMG 16 04 08 Insert Style VNMG Material Steel Maximum Bore Depth 0.7874 System Size 64 mm 0 deg body Without coolant entry Floating wedge, RC hole interface No coolant exit -6 deg orthogonal rake 37.5 mm H shank 93 deg cutting edge -8 deg inclination 20 life cycle state 45 mm protruding 45 mm OAL 20 mm maximum overhang -3 deg lead 30 deg maximum ramping V insert shape 570-DVUNR/L-80..X tool style ANSI Code: 570-DVUNR-80-16X ISO Code: 570-DVUNR-80-16X
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 570-DVUNR-80-16X |
| Bore Diameter | 3.937 in |
| Catalog Number | 5856125 |
| Center to Cutting Edge | 2.5196 in |
| Country of Origin | NO |
| Finish | 400 |
| Gross Weight Per Pack | 0.4200 lb |
| Head Diameter | 3.1496 in |
| Item Group | 410 |
| Master Insert | VNMG 16 04 08 |
| Series | T-Max® P |
| Torque Newton Meters | 3 |
| Type | SL Screw Mount |
| UPC 11 | 69826252655 |
| Warranty | SL, Screw Mounted |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Head Length|Projection | 0.7874 in |
| Insert Compatibility | VNMG 16 04 08 |
| Insert Style | VNMG |
| Material | Steel |
| Maximum Bore Depth | 0.7874 |
| System Size | 64 mm |
| 0 deg body |
| Without coolant entry |
| Floating wedge, RC hole interface |
| No coolant exit |
| -6 deg orthogonal rake |
| 37.5 mm H shank |
| 93 deg cutting edge |
| -8 deg inclination |
| 20 life cycle state |
| 45 mm protruding |
| 45 mm OAL |
| 20 mm maximum overhang |
| -3 deg lead |
| 30 deg maximum ramping |
| V insert shape |
| 570-DVUNR/L-80..X tool style |
| ANSI Code: 570-DVUNR-80-16X |
| ISO Code: 570-DVUNR-80-16X |
