Sandvik Coromant

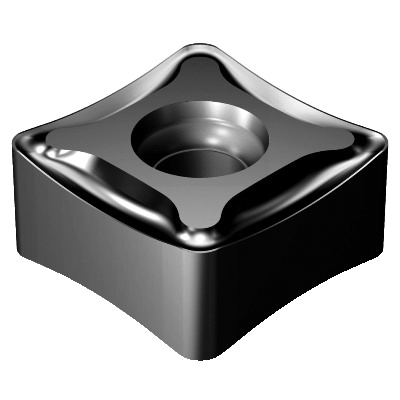

Sandvik Coromant 5854768 CoroMill® 331 Side and Face Milling Insert, N331.1D-136508E-PM 3040 ANSI, S-Square, Carbide, 3040
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5854768 CoroMill® 331 Side and Face Milling Insert, N331.1D-136508E-PM 3040 ANSI, S-Square, Carbide, 3040
SKU1248485
MFGR #5854768
Your Cost: $34.63/ea
List: Sandvik Coromant Milling Insert, Side and Face, Series: CoroMill® 331, N331.1D..E-PM Insert, S-Square, 0.5275 in Inscribed Circle, 0.2578 in Thickness, 0.5275 in Length, PM Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1712 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: N331.1D-136508E-PM 3040, ISO Code: N331.1D-136508E-PM 3040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Side and Face, Series: CoroMill® 331, N331.1D..E-PM Insert, S-Square, 0.5275 in Inscribed Circle, 0.2578 in Thickness, 0.5275 in Length, PM Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1712 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: N331.1D-136508E-PM 3040, ISO Code: N331.1D-136508E-PM 3040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number N331.1D-136508E-PM 3040 ANSI Code N331.1D-136508E-PM 3040 Catalog Number 5854768 Corner Radius 0.0314 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.1712 in Included Angle S - Square ISO Code N331.1D-136508E-PM 3040 Item Group 350 Lead Angle 90 deg Length 0.5275 in Material Application Cast Iron Relief Angle 6.55 mm Series CoroMill® 331 Thickness 0.2578 in Type Side and Face UPC 11 69826251620 Width Side and Face Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.5275 in Insert Size Carbide Insert Style N331.1D..E-PM Manufacturer's Grade 3040 Material Carbide Material Grade K Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 11.4 mm D cutting 1.2 mm L wiper edge 90 deg included 88 deg major cutting edge 11.4 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner E cutting edge condition 8 cutting edge Screw clamp mounting 0.1 to 0.29 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N331.1D-136508E-PM 3040 |
| ANSI Code | N331.1D-136508E-PM 3040 |
| Catalog Number | 5854768 |
| Corner Radius | 0.0314 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1712 in |
| Included Angle | S - Square |
| ISO Code | N331.1D-136508E-PM 3040 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.5275 in |
| Material Application | Cast Iron |
| Relief Angle | 6.55 mm |
| Series | CoroMill® 331 |
| Thickness | 0.2578 in |
| Type | Side and Face |
| UPC 11 | 69826251620 |
| Width | Side and Face |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.5275 in |
| Insert Size | Carbide |
| Insert Style | N331.1D..E-PM |
| Manufacturer's Grade | 3040 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 11.4 mm D cutting |
| 1.2 mm L wiper edge |
| 90 deg included |
| 88 deg major cutting edge |
| 11.4 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.29 mm/r cutting feed |
