Sandvik Coromant

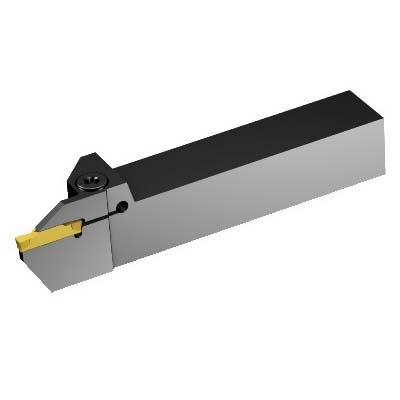

Sandvik Coromant 5854350 CoroCut® 1-2 Indexable Shank Tool, N123R1-1500-0010-GR insert, R Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5854350 CoroCut® 1-2 Indexable Shank Tool, N123R1-1500-0010-GR insert, R Insert Seat, Left Hand
SKU1254171
MFGR #5854350
Your Cost: $363.93/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123R1-1500-0010-GR, LF123R32-3232B, 9.8425 in Overall Length, Rectangular Shank, 1.2598 in H x 1.2598 in W Shank, R Insert Seat, Left Hand Cutting, 1.2598 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123R1-1500-0010-GR, LF123R32-3232B, 9.8425 in Overall Length, Rectangular Shank, 1.2598 in H x 1.2598 in W Shank, R Insert Seat, Left Hand Cutting, 1.2598 in Maximum Depth of Cut, Steel
Alternate Catalog Number LF123R32-3232B Catalog Number 5854350 Country of Origin IN Finish Rectangular Geometry LF123R32-3232B Gross Weight Per Pack 6.3800 lb Head Length 32 mm Internal or External External Item Group 480 Material Steel Minimum Groove Width 32 mm H x 32 mm W Series CoroCut® 1-2 Shank Length 1.358" Toolholder Type R/LF123..B Type Indexable UPC 11 69826251492 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Insert Compatibility N123R1-1500-0010-GR Insert Seat Size R Maximum Depth of Cut 1.2598 in Overall Length 9.8425 in Screw Type 5512044-01 Shank Size 1.2598 in H x 1.2598 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry No coolant exit 90 deg cutting edge 71.3 mm minimum overhang 10 Nm torque 0 deg inclination 0 deg rake ANSI Code: LF123R32-3232B ISO Code: LF123R32-3232B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123R32-3232B |
| Catalog Number | 5854350 |
| Country of Origin | IN |
| Finish | Rectangular |
| Geometry | LF123R32-3232B |
| Gross Weight Per Pack | 6.3800 lb |
| Head Length | 32 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Minimum Groove Width | 32 mm H x 32 mm W |
| Series | CoroCut® 1-2 |
| Shank Length | 1.358" |
| Toolholder Type | R/LF123..B |
| Type | Indexable |
| UPC 11 | 69826251492 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123R1-1500-0010-GR |
| Insert Seat Size | R |
| Maximum Depth of Cut | 1.2598 in |
| Overall Length | 9.8425 in |
| Screw Type | 5512044-01 |
| Shank Size | 1.2598 in H x 1.2598 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 90 deg cutting edge |
| 71.3 mm minimum overhang |
| 10 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: LF123R32-3232B |
| ISO Code: LF123R32-3232B |
