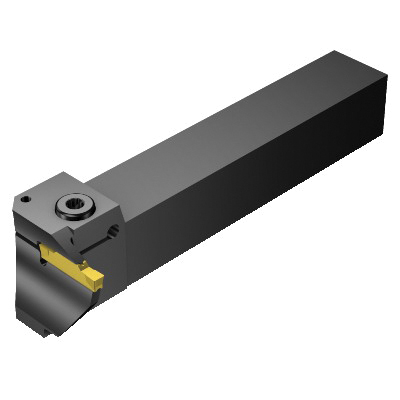

Sandvik Coromant 5853816 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5853816 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1246514
MFGR #5853816
Your Cost: $352.31/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RG123H050-16B-052BM, 6-1/2 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, H Insert Seat, Right Hand Cutting, 2.0472 in ID x 2.3622 to 2.8346 in OD Groove Width, 2.835 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RG123H050-16B-052BM, 6-1/2 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, H Insert Seat, Right Hand Cutting, 2.0472 in ID x 2.3622 to 2.8346 in OD Groove Width, 2.835 in Inscribed Circle, Steel
Alternate Catalog Number RG123H050-16B-052BM Catalog Number 5853816 Country of Origin SE Gross Weight Per Pack 1.8900 lb Item Group 480 Material Steel Maximum Workpiece Diameter 2.835 in Minimum Hole Diameter 2.047 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RG123H050 UPC 11 69826251767 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 6 in Screw Type Socket Head Cap Shank Size 1 in H x 1 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 23.9 mm minimum overhang 40 mm width to cutting item reference point 2.982804 Nm torque 2 axial groove support direction 25.4 mm W shank 40 mm W functiona ANSI Code: RG123H050-16B-052BM ISO Code: RG123H050-16B-052BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RG123H050-16B-052BM |
| Catalog Number | 5853816 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.8900 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 2.835 in |
| Minimum Hole Diameter | 2.047 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RG123H050 |
| UPC 11 | 69826251767 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 6 in |
| Screw Type | Socket Head Cap |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 23.9 mm minimum overhang |
| 40 mm width to cutting item reference point |
| 2.982804 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 40 mm W functiona |
| ANSI Code: RG123H050-16B-052BM |
| ISO Code: RG123H050-16B-052BM |
