Sandvik Coromant

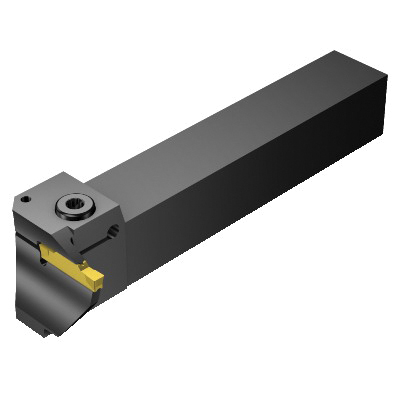

Sandvik Coromant 5853792 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5853792 CoroCut® 1-2, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1246466
MFGR #5853792
Your Cost: $352.31/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RG123H13-2525B-220BM, 6.0236 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 8.6614 in ID x 8.9763 to 19.685 in OD Groove Width, 19.685 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123H2-0400-0004-TF, RG123H13-2525B-220BM, 6.0236 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 8.6614 in ID x 8.9763 to 19.685 in OD Groove Width, 19.685 in Inscribed Circle, Steel
Alternate Catalog Number RG123H13-2525B-220BM Catalog Number 5853792 Country of Origin SE Gross Weight Per Pack 1.8100 lb Item Group 480 Material Steel Maximum Workpiece Diameter 19.685 in Minimum Hole Diameter 8.661 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RG123H13 UPC 11 69826251778 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 5.906 in Screw Type Socket Head Cap Shank Size 0.984 in H x 0.984 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 23.9 mm minimum overhang 40 mm width to cutting item reference point 4.3 Nm torque 2 axial groove support direction 25 mm W shank 40 mm W functiona ANSI Code: RG123H13-2525B-220BM ISO Code: RG123H13-2525B-220BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RG123H13-2525B-220BM |
| Catalog Number | 5853792 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.8100 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 19.685 in |
| Minimum Hole Diameter | 8.661 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RG123H13 |
| UPC 11 | 69826251778 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 5.906 in |
| Screw Type | Socket Head Cap |
| Shank Size | 0.984 in H x 0.984 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 23.9 mm minimum overhang |
| 40 mm width to cutting item reference point |
| 4.3 Nm torque |
| 2 axial groove support direction |
| 25 mm W shank |
| 40 mm W functiona |
| ANSI Code: RG123H13-2525B-220BM |
| ISO Code: RG123H13-2525B-220BM |
