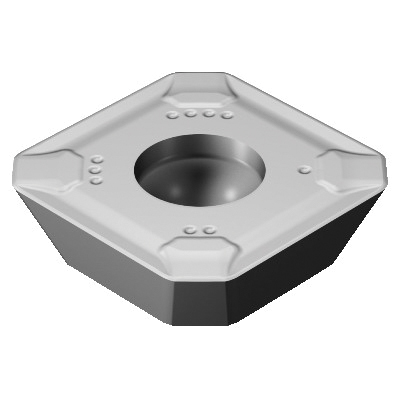

Sandvik Coromant 5853565 CoroMill® 245 Milling Insert, R245-12 T3 K-MM S30T, S-Square, R245..K-MM Insert, Carbide, S30T, R245-12 T3 K-MM S30T
Custom_Product_Images_Illustration
Sandvik Coromant 5853565 CoroMill® 245 Milling Insert, R245-12 T3 K-MM S30T, S-Square, R245..K-MM Insert, Carbide, S30T, R245-12 T3 K-MM S30T
SKU1243713
MFGR #5853565
Your Cost: $21.35/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..K-MM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, MM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R245-12 T3 K-MM S30T, ISO Code: R245-12 T3 K-MM S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..K-MM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, MM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R245-12 T3 K-MM S30T, ISO Code: R245-12 T3 K-MM S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R245-12 T3 K-MM S30T Catalog Number 5853565 Corner Radius 0.059 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.1600 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R245-12 T3 K-MM S30T Item Group 350 Lead Angle 45 ° Length 0.528 in Material Application Heat Resistant Alloys Series CoroMill® 245 Thickness 0.156 in UPC 11 69826251846 Width 0.528 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.528 in Insert Size 12T3 Insert Style R245..K-MM Manufacturer's Grade S30T Material Carbide Material Grade S Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 20 deg clearance 6.5 mm D cutting 2.1 mm L wiper edge 200 mm wiper edge radius 90 deg included 45 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner T cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R245-12 T3 K-MM S30T |
| Catalog Number | 5853565 |
| Corner Radius | 0.059 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.1600 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R245-12 T3 K-MM S30T |
| Item Group | 350 |
| Lead Angle | 45 ° |
| Length | 0.528 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 245 |
| Thickness | 0.156 in |
| UPC 11 | 69826251846 |
| Width | 0.528 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.528 in |
| Insert Size | 12T3 |
| Insert Style | R245..K-MM |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2.1 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
