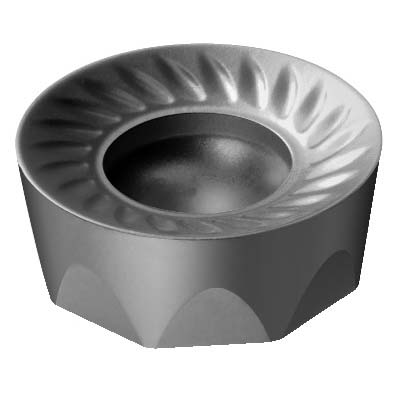

Sandvik Coromant 5853546 CoroMill® 200 Milling Insert, RCKT 12 04 M0-PM S30T ANSI, R-Round, RCKT-PM Insert, Carbide, S30T
RCKT Milling Inserts
1254783
MFG #: 5853546
Sandvik Coromant
15.05000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-PM Insert, R-Round, 0.4724 in Inscribed Circle, 0.1874 in Thickness, PM Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1574 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: RCKT 12 04 M0-PM S30T, ISO Code: RCKT 12 04 M0-PM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.76 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| E cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
