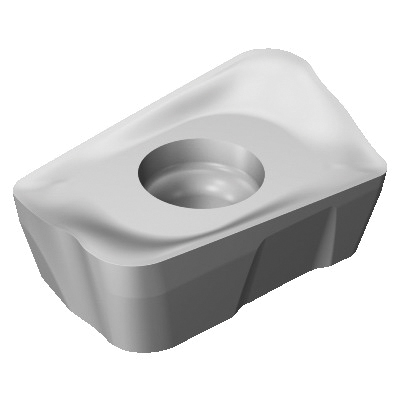

Sandvik Coromant 5853529 CoroMill® 390 Milling Insert, R390-18 06 16M-PM S30T, L-Rectangle, R390-18..M-PM Insert, Carbide, S30T, R390-18 06 16M-PM S30T
Custom_Product_Images_Illustration
Sandvik Coromant 5853529 CoroMill® 390 Milling Insert, R390-18 06 16M-PM S30T, L-Rectangle, R390-18..M-PM Insert, Carbide, S30T, R390-18 06 16M-PM S30T
SKU1234354
MFGR #5853529
Your Cost: $30.74/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-PM Insert, L-Rectangle, 0.433 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1633 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R390-18 06 16M-PM S30T, ISO Code: R390-18 06 16M-PM S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-PM Insert, L-Rectangle, 0.433 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1633 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R390-18 06 16M-PM S30T, ISO Code: R390-18 06 16M-PM S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R390-18 06 16M-PM S30T ANSI Code R390-18 06 16M-PM S30T Catalog Number 5853529 Corner Radius 0.063 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.1633 in ISO Code R390-18 06 16M-PM S30T Item Group 350 Lead Angle 90 deg Length 0.7263 in Relief Angle L - Rectangle Series CoroMill® 390 Thickness 0.2492 in Type 0.433 in UPC 11 69826252127 Warranty 11 mm Width 0.433 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.433 in Insert Size PM Insert Style R390-18..M-PM Manufacturer's Grade S30T Material Carbide Material Grade S Maximum Depth of Cut 6.33 mm Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 16 mm D cutting 1.1 mm L wiper edge 90 deg major cutting edge 15.4 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-18 06 16M-PM S30T |
| ANSI Code | R390-18 06 16M-PM S30T |
| Catalog Number | 5853529 |
| Corner Radius | 0.063 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1633 in |
| ISO Code | R390-18 06 16M-PM S30T |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.7263 in |
| Relief Angle | L - Rectangle |
| Series | CoroMill® 390 |
| Thickness | 0.2492 in |
| Type | 0.433 in |
| UPC 11 | 69826252127 |
| Warranty | 11 mm |
| Width | 0.433 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.433 in |
| Insert Size | PM |
| Insert Style | R390-18..M-PM |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 6.33 mm |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 16 mm D cutting |
| 1.1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
