Sandvik Coromant

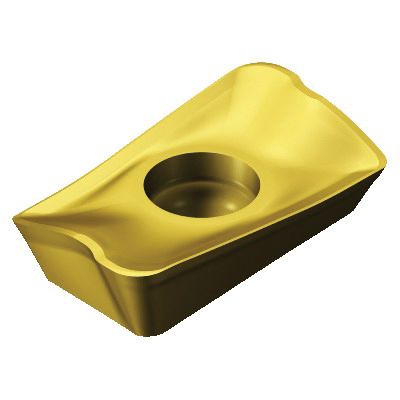

Sandvik Coromant 5853511 CoroMill® 390 Milling Insert, R390-17 04 08M-PM S40T, L-Rectangle, R390..M-PM Insert, Carbide, S40T, R390-17 04 08M-PM S40T
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5853511 CoroMill® 390 Milling Insert, R390-17 04 08M-PM S40T, L-Rectangle, R390..M-PM Insert, Carbide, S40T, R390-17 04 08M-PM S40T
SKU597440
MFGR #5853511
Your Cost: $24.21/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R390-17 04 08M-PM S40T, ISO Code: R390-17 04 08M-PM S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: R390-17 04 08M-PM S40T, ISO Code: R390-17 04 08M-PM S40T, Right Hand, Carbide, CVD Coated, Material Grade: S
Alternate Catalog Number R390-17 04 08M-PM S40T ANSI Code R390-17 04 08M-PM S40T Catalog Number 5853511 Corner Radius 0.031 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R390-17 04 08M-PM S40T Item Group 350 Lead Angle 90 deg Length 0.687 in Material Application Heat Resistant Alloys Series CoroMill® 390 Thickness 0.1874 in Type 9.6 mm UPC 11 69826252092 UPC 12 69826252092 Width 0.378 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.378 in Insert Size S40T Insert Style R390..M-PM Manufacturer's Grade S40T Material Carbide Material Grade S Maximum Depth of Cut 4.7625 mm Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 19 deg clearance 16 mm D cutting 1.5 mm L wiper edge 90 deg major cutting edge 15.7 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-17 04 08M-PM S40T |
| ANSI Code | R390-17 04 08M-PM S40T |
| Catalog Number | 5853511 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R390-17 04 08M-PM S40T |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.687 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 390 |
| Thickness | 0.1874 in |
| Type | 9.6 mm |
| UPC 11 | 69826252092 |
| UPC 12 | 69826252092 |
| Width | 0.378 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.378 in |
| Insert Size | S40T |
| Insert Style | R390..M-PM |
| Manufacturer's Grade | S40T |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 4.7625 mm |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 16 mm D cutting |
| 1.5 mm L wiper edge |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
