Sandvik Coromant

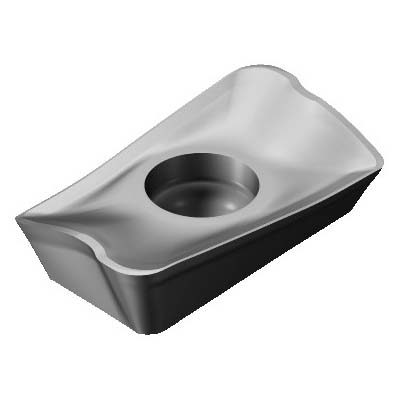

Sandvik Coromant 5853467 CoroMill® 390 Milling Insert, R390-11 T3 08M-PL S30T, L-Rectangle, R390..M-PL Insert, Carbide, S30T, R390-11 T3 08M-PL S30T
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5853467 CoroMill® 390 Milling Insert, R390-11 T3 08M-PL S30T, L-Rectangle, R390..M-PL Insert, Carbide, S30T, R390-11 T3 08M-PL S30T
SKU1234315
MFGR #5853467
Your Cost: $23.45/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PL Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PL Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R390-11 T3 08M-PL S30T, ISO Code: R390-11 T3 08M-PL S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PL Insert, L-Rectangle, 0.268 in Inscribed Circle, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PL Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R390-11 T3 08M-PL S30T, ISO Code: R390-11 T3 08M-PL S30T, Right Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R390-11 T3 08M-PL S30T ANSI Code R390-11 T3 08M-PL S30T Catalog Number 5853467 Corner Radius 0.031 in Country of Origin JP Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in Includes 3.59 mm ISO Code R390-11 T3 08M-PL S30T Item Group 350 Lead Angle 90 deg Length 0.4507 in Series CoroMill® 390 Thickness 0.1413 in Type 0.268 in UPC 11 69826252003 Warranty 6.8 mm Width 0.268 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.268 in Insert Size Carbide Insert Style R390..M-PL Manufacturer's Grade S30T Material Carbide Material Grade S Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 1.2 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-11 T3 08M-PL S30T |
| ANSI Code | R390-11 T3 08M-PL S30T |
| Catalog Number | 5853467 |
| Corner Radius | 0.031 in |
| Country of Origin | JP |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Includes | 3.59 mm |
| ISO Code | R390-11 T3 08M-PL S30T |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.4507 in |
| Series | CoroMill® 390 |
| Thickness | 0.1413 in |
| Type | 0.268 in |
| UPC 11 | 69826252003 |
| Warranty | 6.8 mm |
| Width | 0.268 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.268 in |
| Insert Size | Carbide |
| Insert Style | R390..M-PL |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 1.2 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
