Sandvik Coromant 5853452 CoroMill® 300 Milling Insert, R300-1648M-PM S30T, R-Round, R300..M-PM Insert, Carbide, S30T, R300-1648M-PM S30T

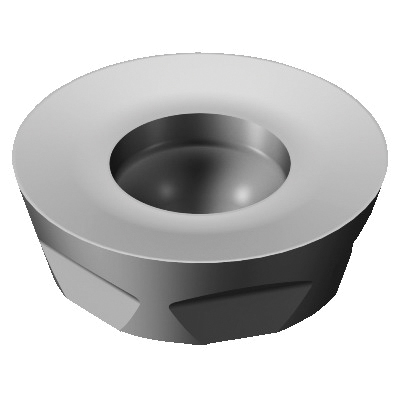

Custom_Product_Images_Illustration
Sandvik Coromant 5853452 CoroMill® 300 Milling Insert, R300-1648M-PM S30T, R-Round, R300..M-PM Insert, Carbide, S30T, R300-1648M-PM S30T
SKU1251021
MFGR #5853452
Your Cost: $21.43/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-PM Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PM Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1648M-PM S30T, ISO Code: R300-1648M-PM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-PM Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PM Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1648M-PM S30T, ISO Code: R300-1648M-PM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R300-1648M-PM S30T ANSI Code R300-1648M-PM S30T Catalog Number 5853452 Corner Radius 0.3149 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2244 in ISO Code R300-1648M-PM S30T Item Group 350 Lead Angle 0 deg Length 4.7625 mm Material Application Heat Resistant Alloys Series CoroMill® 300 Thickness 0.1874 in Type Carbide UPC 11 69826251935 Width CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.6299 in Insert Size 4.7625 mm Insert Style R300..M-PM Manufacturer's Grade S30T Material Carbide Material Grade S Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 4 mm D cutting 1-side cutting 20 life cycle state 6 corner E cutting edge condition 6 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-1648M-PM S30T |
| ANSI Code | R300-1648M-PM S30T |
| Catalog Number | 5853452 |
| Corner Radius | 0.3149 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| ISO Code | R300-1648M-PM S30T |
| Item Group | 350 |
| Lead Angle | 0 deg |
| Length | 4.7625 mm |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 300 |
| Thickness | 0.1874 in |
| Type | Carbide |
| UPC 11 | 69826251935 |
| Width | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.6299 in |
| Insert Size | 4.7625 mm |
| Insert Style | R300..M-PM |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 4 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| E cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
