Sandvik Coromant

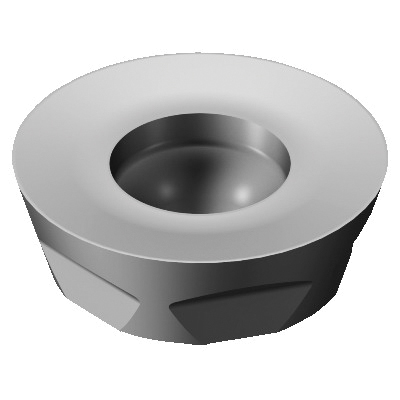

Sandvik Coromant 5853444 CoroMill® 300 Milling Insert, R300-1340E-PL S30T ANSI, R-Round, R300..E-PL (INCH) Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5853444 CoroMill® 300 Milling Insert, R300-1340E-PL S30T ANSI, R-Round, R300..E-PL (INCH) Insert, Carbide
SKU1251139
MFGR #5853444
Your Cost: $19.79/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL (INCH) Insert, R-Round, 1/2 in Inscribed Circle, 0.1562 in Thickness, PL Chipbreaker, 1/4 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1340E-PL S30T, ISO Code: R300-1340E-PL S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL (INCH) Insert, R-Round, 1/2 in Inscribed Circle, 0.1562 in Thickness, PL Chipbreaker, 1/4 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1340E-PL S30T, ISO Code: R300-1340E-PL S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R300-1340E-PL S30T ANSI Code R300-1340E-PL S30T Catalog Number 5853444 Corner Radius 1/4 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1614 in ISO Code R300-1340E-PL S30T Item Group 350 Lead Angle 0 deg Length R300-1340E-PL S30T Material Application Heat Resistant Alloys Series CoroMill® 300 Thickness 0.1562 in Type R - Round UPC 11 69826251872 Width CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 1/2 in Insert Size Positive Insert Style R300..E-PL (INCH) Manufacturer's Grade S30T Material Carbide Material Grade S Maximum Depth of Cut 3.96875 mm Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3.18 mm D cutting 1-side cutting 20 life cycle state 6 corner F cutting edge condition 6 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-1340E-PL S30T |
| ANSI Code | R300-1340E-PL S30T |
| Catalog Number | 5853444 |
| Corner Radius | 1/4 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1614 in |
| ISO Code | R300-1340E-PL S30T |
| Item Group | 350 |
| Lead Angle | 0 deg |
| Length | R300-1340E-PL S30T |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 300 |
| Thickness | 0.1562 in |
| Type | R - Round |
| UPC 11 | 69826251872 |
| Width | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 1/2 in |
| Insert Size | Positive |
| Insert Style | R300..E-PL (INCH) |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 3.96875 mm |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3.18 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| F cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
