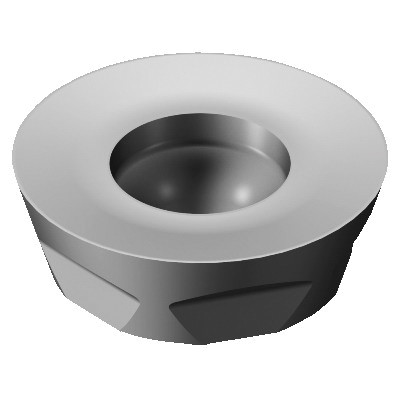

Sandvik Coromant 5853437 CoroMill® 300 Milling Insert, R300-1240E-PL S30T ANSI, R-Round, R300..E-PL Insert, Carbide, S30T
Custom_Product_Images_Illustration
Sandvik Coromant 5853437 CoroMill® 300 Milling Insert, R300-1240E-PL S30T ANSI, R-Round, R300..E-PL Insert, Carbide, S30T
SKU1251123
MFGR #5853437
Your Cost: $18.98/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL Insert, R-Round, 0.4724 in Inscribed Circle, 0.1562 in Thickness, PL Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1240E-PL S30T, ISO Code: R300-1240E-PL S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PL Insert, R-Round, 0.4724 in Inscribed Circle, 0.1562 in Thickness, PL Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R300-1240E-PL S30T, ISO Code: R300-1240E-PL S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number R300-1240E-PL S30T ANSI Code R300-1240E-PL S30T Catalog Number 5853437 Corner Radius 0.2362 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.1614 in ISO Code R300-1240E-PL S30T Item Group 350 Lead Angle 0 deg Length 3.96875 mm Series CoroMill® 300 Thickness 0.1562 in Type Neutral UPC 11 69826251862 Width R - Round Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.4724 in Insert Size 12 mm Insert Style R300..E-PL Manufacturer's Grade S30T Material Carbide Material Grade S Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3 mm D cutting 1-side cutting 20 life cycle state 6 corner F cutting edge condition 6 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-1240E-PL S30T |
| ANSI Code | R300-1240E-PL S30T |
| Catalog Number | 5853437 |
| Corner Radius | 0.2362 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1614 in |
| ISO Code | R300-1240E-PL S30T |
| Item Group | 350 |
| Lead Angle | 0 deg |
| Length | 3.96875 mm |
| Series | CoroMill® 300 |
| Thickness | 0.1562 in |
| Type | Neutral |
| UPC 11 | 69826251862 |
| Width | R - Round |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.4724 in |
| Insert Size | 12 mm |
| Insert Style | R300..E-PL |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Material Grade | S |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| F cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
