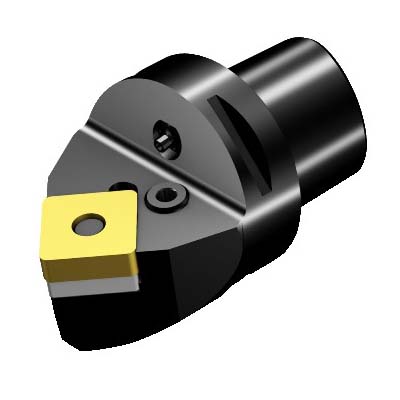

Sandvik Coromant 5853289 T-Max® P Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Neutral, SNMG 150612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5853289 T-Max® P Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Neutral, SNMG 150612 Insert
SKU1228003
MFGR #5853289
Your Cost: $742.18/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.559 in Head Length/Projection, 4.0551 in Overall Length, S-Shape Insert, Insert Compatibility: SNMG 150612, Neutral Cutting, 0.0196 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.559 in Head Length/Projection, 4.0551 in Overall Length, S-Shape Insert, Insert Compatibility: SNMG 150612, Neutral Cutting, 0.0196 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-PSDNN-00065-15HP Catalog Number 5853289 Center to Cutting Height 0.625 Country of Origin IN Finish T-Max® P Gross Weight Per Pack 2.5100 lb Head Length|Projection 2.559 in Insert Style S-Shape Item Group 410 Master Insert SNMG 15 06 12 Material Steel Overall Length 4.0551 in Series T-Max® P Type 103 mm UPC 11 69826251115 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.0196 in Cutting Direction Neutral Insert Compatibility SNMG 150612 Insert Holding Method 5 Number of Inserts SNMG 150612 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 45 deg cutting edge -6 deg inclination 40 deg ramping 5 Nm torque 5/8 in insert seat size 65 mm maximum overhang 45 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C6-PSDNN-00065-15HP ISO Code: C6-PSDNN-00065-15HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-PSDNN-00065-15HP |
| Catalog Number | 5853289 |
| Center to Cutting Height | 0.625 |
| Country of Origin | IN |
| Finish | T-Max® P |
| Gross Weight Per Pack | 2.5100 lb |
| Head Length|Projection | 2.559 in |
| Insert Style | S-Shape |
| Item Group | 410 |
| Master Insert | SNMG 15 06 12 |
| Material | Steel |
| Overall Length | 4.0551 in |
| Series | T-Max® P |
| Type | 103 mm |
| UPC 11 | 69826251115 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.0196 in |
| Cutting Direction | Neutral |
| Insert Compatibility | SNMG 150612 |
| Insert Holding Method | 5 |
| Number of Inserts | SNMG 150612 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 45 deg cutting edge |
| -6 deg inclination |
| 40 deg ramping |
| 5 Nm torque |
| 5/8 in insert seat size |
| 65 mm maximum overhang |
| 45 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-PSDNN-00065-15HP |
| ISO Code: C6-PSDNN-00065-15HP |
