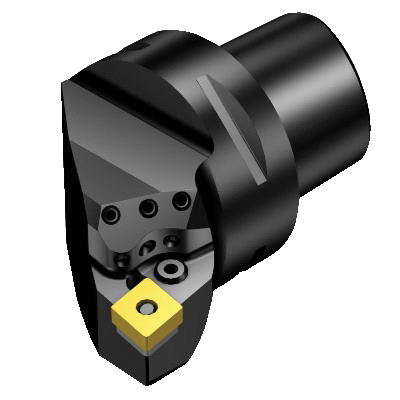

Sandvik Coromant 5853284 T-Max® P Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Right Hand, CNMG 190612 Insert
Modular Turning/Profiling Cutting Heads
1227990
MFG #: 5853284
Sandvik Coromant
646.12000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.559 in Head Length/Projection, 4.0551 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 190612, Right Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 110 - 195 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 10 Nm torque |
| 3/4 in insert seat size |
| 65 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-PCLNR-45065-19HP |
| ISO Code: C6-PCLNR-45065-19HP |
