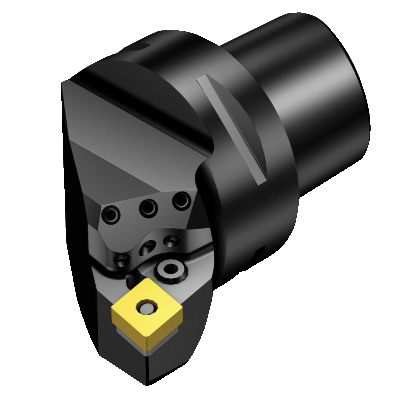

Sandvik Coromant 5853279 T-Max® P Turning Cutting Unit, 2.3622 in, 3.5433 in OAL, Left Hand, CNMG 160612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5853279 T-Max® P Turning Cutting Unit, 2.3622 in, 3.5433 in OAL, Left Hand, CNMG 160612 Insert
SKU1245590
MFGR #5853279
Your Cost: $646.94/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.3622 in Head Length/Projection, 3.5433 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 2.3622 in Head Length/Projection, 3.5433 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Alternate Catalog Number C5-PCLNL-35060-16HP Catalog Number 5853279 Country of Origin IN Gross Weight Per Pack 1.8800 lb Head Length|Projection 60 mm Insert Style CNMG Item Group 410 Material Steel Overall Length 90 mm Series T-Max® P UPC 11 69826251092 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 35 mm Cutting Direction Left Hand Insert Compatibility CNMG 160612 Insert Holding Method Lever Clamp Internal or External External System Size C5 Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 50 mm Dia connection 125 - 165 mm Dia minimum bore 95 deg cutting edge -6 deg inclination 0 deg ramping 5 Nm torque 5/8 in insert seat size 60 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C5-PCLNL-35060-16HP ISO Code: C5-PCLNL-35060-16HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C5-PCLNL-35060-16HP |
| Catalog Number | 5853279 |
| Country of Origin | IN |
| Gross Weight Per Pack | 1.8800 lb |
| Head Length|Projection | 60 mm |
| Insert Style | CNMG |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 90 mm |
| Series | T-Max® P |
| UPC 11 | 69826251092 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 35 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 160612 |
| Insert Holding Method | Lever Clamp |
| Internal or External | External |
| System Size | C5 |
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 50 mm Dia connection |
| 125 - 165 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 5 Nm torque |
| 5/8 in insert seat size |
| 60 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C5-PCLNL-35060-16HP |
| ISO Code: C5-PCLNL-35060-16HP |
