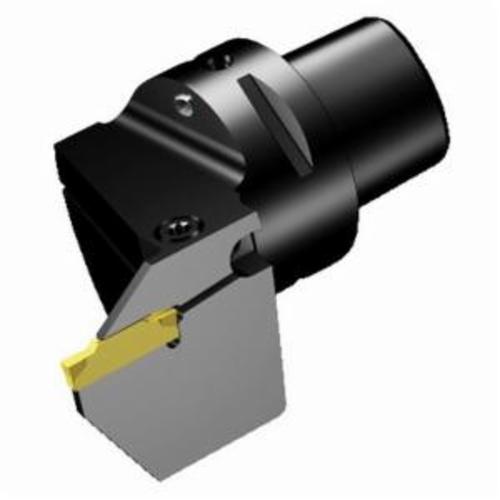

Sandvik Coromant 5846618 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5846618 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert
SKU1237704
MFGR #5846618
Your Cost: $479.69/ea
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Left Hand Cutting, Insert Compatibility: N123G2-0300-0003-TF, 0.3937 in Maximum Depth of Cut, Steel
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Left Hand Cutting, Insert Compatibility: N123G2-0300-0003-TF, 0.3937 in Maximum Depth of Cut, Steel
Alternate Catalog Number C3-LF123G10-22050B Catalog Number 5846618 Country of Origin SE Gross Weight Per Pack 0.5500 lb Head Length 55 mm Item Group 410 Material Steel Modular Head Style C3-LF123 Series CoroCut® 1-2 System Size C3 UPC 11 69826254266 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 22 mm Cutting Direction Left Hand Insert Compatibility N123G2-0300- CM Insert Style N123G2 Maximum Depth of Cut 10 mm Cost efficiency with two edges|Secure and efficient machining 0 deg workpiece side body Axial concentric and radial coolant entry 10 bar coolant Axial inclined coolant exit with nozzle, adjustable 32 mm Dia connection R-Round insert shape 0 deg orthogonal rake 90 deg cutting edge 0 deg inclination 20 life cycle state 55 mm L functional 55 mm L to cutting item reference point 74 mm OAL 55 mm maximum overhang 4.5 Nm torque 22 mm W functional ANSI Code: C3-LF123G10-22050B ISO Code: C3-LF123G10-22050B
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C3-LF123G10-22050B |
| Catalog Number | 5846618 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5500 lb |
| Head Length | 55 mm |
| Item Group | 410 |
| Material | Steel |
| Modular Head Style | C3-LF123 |
| Series | CoroCut® 1-2 |
| System Size | C3 |
| UPC 11 | 69826254266 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 22 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123G2-0300- CM |
| Insert Style | N123G2 |
| Maximum Depth of Cut | 10 mm |
| Cost efficiency with two edges|Secure and efficient machining |
| 0 deg workpiece side body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Axial inclined coolant exit with nozzle, adjustable |
| 32 mm Dia connection |
| R-Round insert shape |
| 0 deg orthogonal rake |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 55 mm L functional |
| 55 mm L to cutting item reference point |
| 74 mm OAL |
| 55 mm maximum overhang |
| 4.5 Nm torque |
| 22 mm W functional |
| ANSI Code: C3-LF123G10-22050B |
| ISO Code: C3-LF123G10-22050B |
