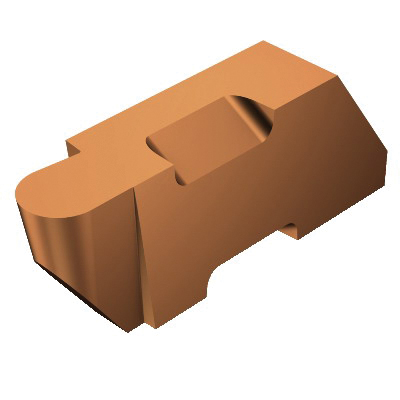

Sandvik Coromant 5846601 Top-Lok®, TLR-3094R 1125, TLR Insert, Carbide, 0.15 in Max Depth of Cut, K/M/P/S
Custom_Product_Images_Illustration
Sandvik Coromant 5846601 Top-Lok®, TLR-3094R 1125, TLR Insert, Carbide, 0.15 in Max Depth of Cut, K/M/P/S
SKU1244968
MFGR #5846601
Your Cost: $48.61/ea
Sandvik Coromant Profiling Insert, Series: Top-Lok®, TLR Insert, 0.15 in Maximum Depth of Cut, 0.344 in Thickness, 0.195 in Width, 0.6338 in Length, ANSI Code: TLR-3094R 1125, 0.094 in Corner Radius, Manufacturer's Grade: 1125, Right Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Sandvik Coromant Profiling Insert, Series: Top-Lok®, TLR Insert, 0.15 in Maximum Depth of Cut, 0.344 in Thickness, 0.195 in Width, 0.6338 in Length, ANSI Code: TLR-3094R 1125, 0.094 in Corner Radius, Manufacturer's Grade: 1125, Right Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Alternate Catalog Number TLR-3094R 1125 ANSI Code TLR-3094R 1125 Catalog Number 5846601 Corner Radius 0.094 in Country of Origin US Finish PVD-TiCrAlN+TiAlN Coated Gross Weight Per Pack 0.2800 lb Hand of Insert Right Item Group 315 Length 0.6338 in Maximum Depth of Cut 0.15 in Relief Angle 10 ° Series Top-Lok® Thickness 0.344 in UPC 11 69826252211 Width 0.195 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Size 3094 Insert Style TLR Manufacturer's Grade 1125 Material Carbide Material Grade K, M, P, S Multiply operations with the same holder by just changing insert Double-ended inserts provide high edge security Interchangeable with similar clamping systems by changing the top clamp and screw 4.7752 mm W cutting F cutting edge condition Notch clamping -0.0254 mm W cutting lower tolerance 0.0254 mm W cutting upper tolerance 90 deg ramping 2 edges Top lok insert mounting 5 insert mounting style code 3 insert seat size ANSI Code: TLR-3094R 1125 ISO Code: TLR-3094R 1125
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TLR-3094R 1125 |
| ANSI Code | TLR-3094R 1125 |
| Catalog Number | 5846601 |
| Corner Radius | 0.094 in |
| Country of Origin | US |
| Finish | PVD-TiCrAlN+TiAlN Coated |
| Gross Weight Per Pack | 0.2800 lb |
| Hand of Insert | Right |
| Item Group | 315 |
| Length | 0.6338 in |
| Maximum Depth of Cut | 0.15 in |
| Relief Angle | 10 ° |
| Series | Top-Lok® |
| Thickness | 0.344 in |
| UPC 11 | 69826252211 |
| Width | 0.195 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Size | 3094 |
| Insert Style | TLR |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | K, M, P, S |
| Multiply operations with the same holder by just changing insert |
| Double-ended inserts provide high edge security |
| Interchangeable with similar clamping systems by changing the top clamp and screw |
| 4.7752 mm W cutting |
| F cutting edge condition |
| Notch clamping |
| -0.0254 mm W cutting lower tolerance |
| 0.0254 mm W cutting upper tolerance |
| 90 deg ramping |
| 2 edges |
| Top lok insert mounting |
| 5 insert mounting style code |
| 3 insert seat size |
| ANSI Code: TLR-3094R 1125 |
| ISO Code: TLR-3094R 1125 |
