Sandvik Coromant

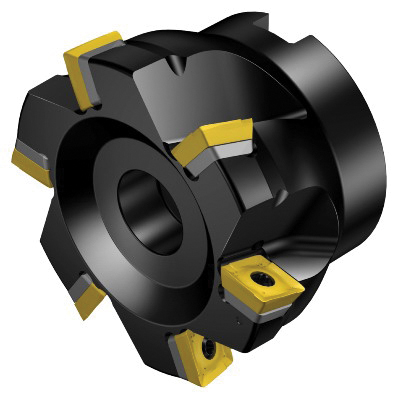

Sandvik Coromant 5844046 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 4.9212 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5844046 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 4.9212 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1240412
MFGR #5844046
Your Cost: $2,051.94/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 12 Inserts, Insert Compatibility: 490R-1404.., 1.5748 in Shank Dia, Right Hand Cutting, ANSI Code: 490-125Q40-14H, ISO Code: 490-125Q40-14H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 12 Inserts, Insert Compatibility: 490R-1404.., 1.5748 in Shank Dia, Right Hand Cutting, ANSI Code: 490-125Q40-14H, ISO Code: 490-125Q40-14H, Steel
Alternate Catalog Number 490-125Q40-14H ANSI Code 490-125Q40-14H Catalog Number 5844046 Country of Origin US Gross Weight Per Pack 7.2500 lb ISO Code 490-125Q40-14H Item Group 455 Lead Angle 90 ° Material Steel Series CoroMill® 490 Standards ISO 6462:2011 UPC 11 69826252610 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 4.9212 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style 490..Qxx Maximum Depth of Cut 0.394 in Number of Inserts 12 Overall Length 2.4803 in Shank Diameter 1.5748 in Shank Type Arbor Through Coolant Yes Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 125 mm Dia maximum cutting 90 deg cutting edge 63 mm overhang 0 deg maximum ramping 7800 r/min 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Cutter retaining screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 490-125Q40-14H |
| ANSI Code | 490-125Q40-14H |
| Catalog Number | 5844046 |
| Country of Origin | US |
| Gross Weight Per Pack | 7.2500 lb |
| ISO Code | 490-125Q40-14H |
| Item Group | 455 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826252610 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 4.9212 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | 490..Qxx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 12 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1.5748 in |
| Shank Type | Arbor |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 125 mm Dia maximum cutting |
| 90 deg cutting edge |
| 63 mm overhang |
| 0 deg maximum ramping |
| 7800 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Cutter retaining screw adaptive interface |
