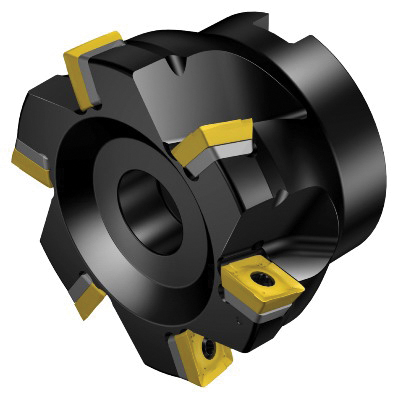

Sandvik Coromant 5844039 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 3.1496 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5844039 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 3.1496 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1240477
MFGR #5844039
Your Cost: $1,090.50/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 3.1496 in Cutting Dia, 1.9685 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 6 Inserts, Insert Compatibility: 490R-1404.., 1.0629 in Shank Dia, Right Hand Cutting, ANSI Code: 490-080Q27-14M, ISO Code: 490-080Q27-14M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 3.1496 in Cutting Dia, 1.9685 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 6 Inserts, Insert Compatibility: 490R-1404.., 1.0629 in Shank Dia, Right Hand Cutting, ANSI Code: 490-080Q27-14M, ISO Code: 490-080Q27-14M, Steel
Alternate Catalog Number 490-080Q27-14M ANSI Code 490-080Q27-14M Catalog Number 5844039 Country of Origin SE Gross Weight Per Pack 2.7700 lb ISO Code 490-080Q27-14M Item Group 455 Lead Angle 90 ° Material Steel Series CoroMill® 490 Standards ISO 6462:2011 UPC 11 69826252604 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 3.1496 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style 490..Qxx Maximum Depth of Cut 0.394 in Number of Inserts 6 Overall Length 1.9685 in Shank Diameter 1.0629 in Shank Type Arbor Through Coolant Yes Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 80 mm Dia maximum cutting 90 deg cutting edge 50 mm overhang 0 deg maximum ramping 10100 r/min cutting feed 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 490-080Q27-14M |
| ANSI Code | 490-080Q27-14M |
| Catalog Number | 5844039 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.7700 lb |
| ISO Code | 490-080Q27-14M |
| Item Group | 455 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826252604 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 3.1496 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | 490..Qxx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 6 |
| Overall Length | 1.9685 in |
| Shank Diameter | 1.0629 in |
| Shank Type | Arbor |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 80 mm Dia maximum cutting |
| 90 deg cutting edge |
| 50 mm overhang |
| 0 deg maximum ramping |
| 10100 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
