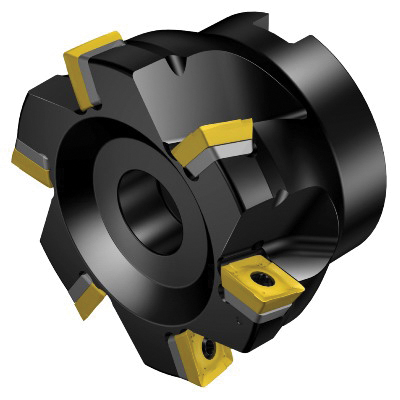

Sandvik Coromant 5844008 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 2 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 5844008 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 2 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1174699
MFGR #5844008
Your Cost: $939.94/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2 in Cutting Dia, 1.575 in Overall Length, 0.394 in Maximum Depth of Cut, A490..Rxx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: A490-051R19-14H, ISO Code: A490-051R19-14H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2 in Cutting Dia, 1.575 in Overall Length, 0.394 in Maximum Depth of Cut, A490..Rxx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: A490-051R19-14H, ISO Code: A490-051R19-14H, Steel
Alternate Catalog Number A490-051R19-14H ANSI Code A490-051R19-14H Catalog Number 5844008 Country of Origin US Gross Weight Per Pack 0.6600 lb Head Length 50.8 mm Insert Gage Screw Square ISO Code A490-051R19-14H Item Group 455 Material Steel Series CoroMill® 490 Standards ISO 6462:2011 Type Square UPC 11 69826250977 UPC 12 69826250977 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style A490..Rxx Maximum Depth of Cut 0.394 in Number of Inserts 5 Overall Length 1.575 in Shank Diameter 3/4 in Shank Length CoroMill® 490 Shank Type 5 Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 50.8 mm Dia maximum cutting 90 deg cutting edge 40.005 mm overhang 0 deg maximum ramping 22200 r/min 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A490-051R19-14H |
| ANSI Code | A490-051R19-14H |
| Catalog Number | 5844008 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6600 lb |
| Head Length | 50.8 mm |
| Insert Gage Screw | Square |
| ISO Code | A490-051R19-14H |
| Item Group | 455 |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| Type | Square |
| UPC 11 | 69826250977 |
| UPC 12 | 69826250977 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | A490..Rxx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 5 |
| Overall Length | 1.575 in |
| Shank Diameter | 3/4 in |
| Shank Length | CoroMill® 490 |
| Shank Type | 5 |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 50.8 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40.005 mm overhang |
| 0 deg maximum ramping |
| 22200 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
