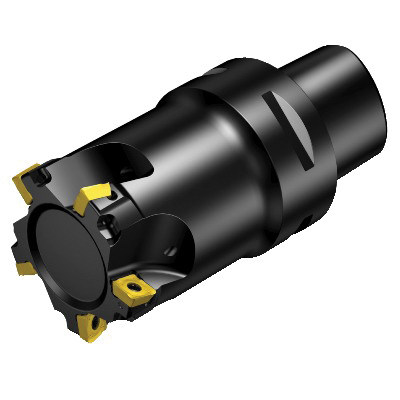

Sandvik Coromant 5829355 CoroMill® 490 Square Shoulder Milling Cutter, 490..Cx Insert, 1.9685 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5829355 CoroMill® 490 Square Shoulder Milling Cutter, 490..Cx Insert, 1.9685 in Cutting, Right Hand
SKU1240171
MFGR #5829355
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.9685 in Cutting Dia, 5.0393 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Cx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 3.1496 in Shank Dia, Right Hand Cutting, ANSI Code: 490-050C8-14H, ISO Code: 490-050C8-14H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.9685 in Cutting Dia, 5.0393 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Cx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 3.1496 in Shank Dia, Right Hand Cutting, ANSI Code: 490-050C8-14H, ISO Code: 490-050C8-14H, Steel
ANSI Code 490-050C8-14H Catalog Number 5829355 Country of Origin SE Gross Weight Per Pack 5.9700 lb ISO Code 490-050C8-14H Lead Angle 90 ° Material Steel Series CoroMill® 490 UPC 11 69826252585 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1.9685 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style 490..Cx Maximum Depth of Cut 0.394 in Number of Inserts 5 Overall Length 5.0393 in Shank Diameter 3.1496 in Shank Type Coromant Capto® Through Coolant Yes Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 50 mm Dia maximum cutting 90 deg cutting edge 45 mm L usable 80 mm overhang 0 deg maximum ramping 14000 r/min cutting feed 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 490-050C8-14H |
| Catalog Number | 5829355 |
| Country of Origin | SE |
| Gross Weight Per Pack | 5.9700 lb |
| ISO Code | 490-050C8-14H |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| UPC 11 | 69826252585 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1.9685 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | 490..Cx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 5 |
| Overall Length | 5.0393 in |
| Shank Diameter | 3.1496 in |
| Shank Type | Coromant Capto® |
| Through Coolant | Yes |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 50 mm Dia maximum cutting |
| 90 deg cutting edge |
| 45 mm L usable |
| 80 mm overhang |
| 0 deg maximum ramping |
| 14000 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
