Sandvik Coromant

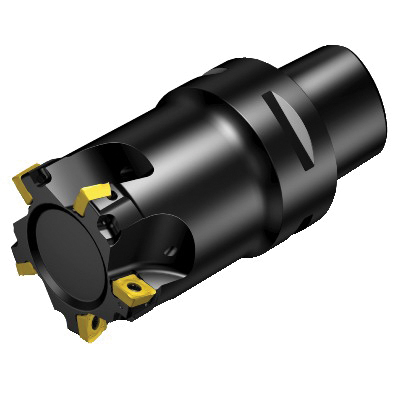

Sandvik Coromant 5829337 CoroMill® 490 Square Shoulder Milling Cutter, 490..Cx Insert, 1.7322 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5829337 CoroMill® 490 Square Shoulder Milling Cutter, 490..Cx Insert, 1.7322 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1240165
MFGR #5829337
Your Cost: $930.34/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.7322 in Cutting Dia, 3.7007 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Cx Insert, 4 Inserts, Insert Compatibility: 490R-1404.., 1.5748 in Shank Dia, Right Hand Cutting, ANSI Code: 490-044C4-14H, ISO Code: 490-044C4-14H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 1.7322 in Cutting Dia, 3.7007 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Cx Insert, 4 Inserts, Insert Compatibility: 490R-1404.., 1.5748 in Shank Dia, Right Hand Cutting, ANSI Code: 490-044C4-14H, ISO Code: 490-044C4-14H, Steel
Alternate Catalog Number 490-044C4-14H ANSI Code 490-044C4-14H Catalog Number 5829337 Country of Origin SE Gross Weight Per Pack 1.9600 lb ISO Code 490-044C4-14H Item Group 455 Lead Angle 90 ° Material Steel Series CoroMill® 490 UPC 11 69826252577 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1.7322 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style 490..Cx Maximum Depth of Cut 0.394 in Number of Inserts 4 Overall Length 3.7007 in Shank Diameter 1.5748 in Shank Type Coromant Capto® Through Coolant Yes 70 mm L body Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 44 mm Dia maximum cutting 90 deg cutting edge 70 mm overhang 0 deg maximum ramping 24600 r/min cutting feed 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 490-044C4-14H |
| ANSI Code | 490-044C4-14H |
| Catalog Number | 5829337 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.9600 lb |
| ISO Code | 490-044C4-14H |
| Item Group | 455 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| UPC 11 | 69826252577 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1.7322 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | 490..Cx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 4 |
| Overall Length | 3.7007 in |
| Shank Diameter | 1.5748 in |
| Shank Type | Coromant Capto® |
| Through Coolant | Yes |
| 70 mm L body |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 44 mm Dia maximum cutting |
| 90 deg cutting edge |
| 70 mm overhang |
| 0 deg maximum ramping |
| 24600 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
