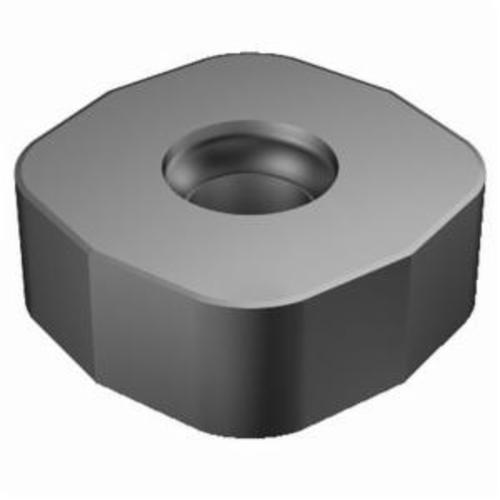

Sandvik Coromant 5782733 CoroMill® 365 Milling insert, N365-1505ZNE 6190, S-Square, N365..E Insert, Carbide, 6190, N365-1505ZNE 6190
N365 Milling Inserts
1237657
MFG #: 5782733
Sandvik Coromant
81.29000
/ ea
Sandvik Coromant Milling insert, Series: CoroMill® 365, N365..E Insert, S-Square, 0.5905 in Inscribed Circle, 0.2228 in Thickness, ZNE Chipbreaker, 0.1417 in Corner Radius, 0 deg Rake, 0.1811 in Hole Dia, Manufacturer's Grade: 6190, ANSI Code: N365-1505ZNE 6190, ISO Code: N365-1505ZNE 6190, Neutral Hand, Carbide, Uncoated, Material Grade: K
- Features
| 0 deg major clearance |
| 6 mm D maximum cutting |
| 0.25 mm W face land |
| 1.2 mm L wiper edge |
| 150 mm wiper edge radius |
| Negative land cutting edge |
| 8 cutting edges |
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 15 deg face land |
| 65 deg cutting edge |
| 6.4 mm L effective cutting edge |
| 2-Side cutting |
| E tolerance class |
| Features wiper edge property |
| 20 life cycle state |
