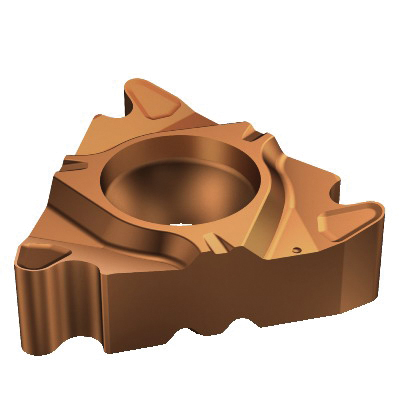

Sandvik Coromant 5781846 CoroThread® 266 Threading Insert, 266LL-16RN01A100M 1125, T-Triangle, 266LL..RN..A Insert, 10, Internal Thread, 266LL-16RN01A100M 1125
266LL Threading Inserts
1240723
MFG #: 5781846
Sandvik Coromant
31.33000
/ ea
Sandvik Coromant Threading Insert, Series: CoroThread® 266, 266LL..RN..A Insert, 16 Insert, T-Triangle, Internal, 10, 3/8 in Inscribed Circle, 0.1562 in Thickness, ANSI Code: 266LL-16RN01A100M 1125, ISO Code: 266LL-16RN01A100M 1125, A Chipbreaker, Negative Rake, 60 deg Included Angle, Manufacturer's Grade: 1125, Left Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
- Features
0 deg clearance |
20 life cycle state |
40 - 60 deg countersunk hole, rail bottom and non-flat surface |
4.4 mm Dia fixing hole |
2.87 mm H theoretical thread |
1.58 mm H difference thread |
8 mounting style code |
1 tooth count |
0.85 mm profile distance |
1.3 mm profile distance |
RN30 thread form |
1.29 mm D maximum cutting |
Internal lay down insert x screw clamp mounting |
3 edges |
3/8 insert seat size code |
