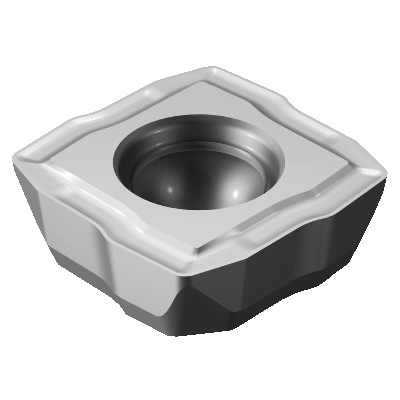

Sandvik Coromant 5765752 CoroDrill® 880, 880-05 03 05H-C-LM H13A, Square, 880..C-LM Insert, 0.3307 in Inscribed Circle, 0.1181 in THK, 880-05 03 05H-C-LM H13A
Custom_Product_Images_Illustration
Sandvik Coromant 5765752 CoroDrill® 880, 880-05 03 05H-C-LM H13A, Square, 880..C-LM Insert, 0.3307 in Inscribed Circle, 0.1181 in THK, 880-05 03 05H-C-LM H13A
SKU328688
MFGR #5765752
Your Cost: $19.62/ea
Sandvik Coromant Drilling Insert, Series: CoroDrill® 880, 880..C-LM Insert, Square, 0.3307 in Inscribed Circle, 0.1181 in Thickness, LM Chipbreaker, 0.0196 in Corner Radius, 0.1259 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: 880-05 03 05H-C-LM H13A, Right Hand, ISO Code: 880-05 03 05H-C-LM H13A, Carbide, Uncoated, Material Grade: N/S
Sandvik Coromant Drilling Insert, Series: CoroDrill® 880, 880..C-LM Insert, Square, 0.3307 in Inscribed Circle, 0.1181 in Thickness, LM Chipbreaker, 0.0196 in Corner Radius, 0.1259 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: 880-05 03 05H-C-LM H13A, Right Hand, ISO Code: 880-05 03 05H-C-LM H13A, Carbide, Uncoated, Material Grade: N/S
Alternate Catalog Number 880-05 03 05H-C-LM H13A ANSI Code 880-05 03 05H-C-LM H13A Catalog Number 5765752 Country of Origin JP Finish Uncoated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1259 in Included Angle Carbide ISO Code 880-05 03 05H-C-LM H13A Item Group 365 Length LM Thickness 0.1181 in Type Uncoated UPC 11 69826235930 UPC 12 69826235930 Width Square Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker LM Corner Radius 0.0196 in Inscribed Circle 0.3307 in Insert Size 8.4 mm Insert Style 880..C-LM Manufacturer's Grade H13A Material Carbide Material Grade N/S Series CoroDrill® 880 Shape Square 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake Center insert position 4 edges Screw clamp mounting 0.02 in nose radius For use with 880-D2400L25-02, 880-D2400L25-03, 880-D2400L25-04, 880-D2450L25-03, 880-D2500L25-02, 880-D2500L25-03, 880-D2500L25-04, 880-D2550L25-03, 880-D2600L32-02, 880-D2600L32-03, 880-D2600L32-04, 880-D2640L32-03, 880-D2650L32-03, 880-D2700L32-02, 880-D2700L32-03, 880-D2700L32-04 C insert usage code 05C insert seat size code H tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-05 03 05H-C-LM H13A |
| ANSI Code | 880-05 03 05H-C-LM H13A |
| Catalog Number | 5765752 |
| Country of Origin | JP |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1259 in |
| Included Angle | Carbide |
| ISO Code | 880-05 03 05H-C-LM H13A |
| Item Group | 365 |
| Length | LM |
| Thickness | 0.1181 in |
| Type | Uncoated |
| UPC 11 | 69826235930 |
| UPC 12 | 69826235930 |
| Width | Square |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | LM |
| Corner Radius | 0.0196 in |
| Inscribed Circle | 0.3307 in |
| Insert Size | 8.4 mm |
| Insert Style | 880..C-LM |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | N/S |
| Series | CoroDrill® 880 |
| Shape | Square |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| Center insert position |
| 4 edges |
| Screw clamp mounting |
| 0.02 in nose radius |
| For use with 880-D2400L25-02, 880-D2400L25-03, 880-D2400L25-04, 880-D2450L25-03, 880-D2500L25-02, 880-D2500L25-03, 880-D2500L25-04, 880-D2550L25-03, 880-D2600L32-02, 880-D2600L32-03, 880-D2600L32-04, 880-D2640L32-03, 880-D2650L32-03, 880-D2700L32-02, 880-D2700L32-03, 880-D2700L32-04 |
| C insert usage code |
| 05C insert seat size code |
| H tolerance class insert |
