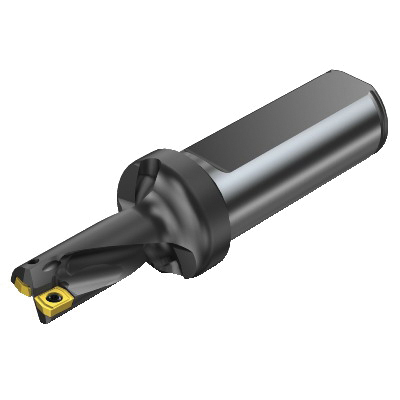

Sandvik Coromant 5765594 CoroDrill® 880 Insert Drill, 0.8661 in Drill, 0.9842 in Shank, 1.7322 in Maximum Drill, 2
Custom_Product_Images_Illustration
Sandvik Coromant 5765594 CoroDrill® 880 Insert Drill, 0.8661 in Drill, 0.9842 in Shank, 1.7322 in Maximum Drill, 2
SKU269412
MFGR #5765594
Your Cost: $706.56/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.8661 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 1.7322 in Maximum Drill Depth, 4.8031 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 1.7322 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.8661 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 1.7322 in Maximum Drill Depth, 4.8031 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM), 1.7322 in Flute Length
Alternate Catalog Number 880-D2200L25-02 Catalog Number 5765594 Country of Origin SE Drill Depth by Diameter Ratio 2 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.6600 lb Item Group 465 Modular Connection Size 0.984 Number of Drill Inserts 25 mm Overall Length 4.8031 in Series CoroDrill® 880 Type 25 mm UPC 11 69826228563 UPC 12 69826228563 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 44 mm Drill Size 0.8661 in Flute Length 1.7322 in Insert Compatibility 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) Maximum Drill Depth 1.7322 in Shank Diameter 0.9842 in Shank Length 122 mm Shank Type Cylinder 65.5529 mm L functional 25 mm Dia body 56 mm L clamping 0.4471 mm L point 21500 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 23 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 60.8 mm L chip flute 20 life cycle state 48 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 880-D2200L25-02 |
| Catalog Number | 5765594 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 2 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.6600 lb |
| Item Group | 465 |
| Modular Connection Size | 0.984 |
| Number of Drill Inserts | 25 mm |
| Overall Length | 4.8031 in |
| Series | CoroDrill® 880 |
| Type | 25 mm |
| UPC 11 | 69826228563 |
| UPC 12 | 69826228563 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 44 mm |
| Drill Size | 0.8661 in |
| Flute Length | 1.7322 in |
| Insert Compatibility | 880-040305H-C-GM (MIIDM) and 880-0403W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 1.7322 in |
| Shank Diameter | 0.9842 in |
| Shank Length | 122 mm |
| Shank Type | Cylinder |
| 65.5529 mm L functional |
| 25 mm Dia body |
| 56 mm L clamping |
| 0.4471 mm L point |
| 21500 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 23 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 60.8 mm L chip flute |
| 20 life cycle state |
| 48 mm L steel body |
