Sandvik Coromant

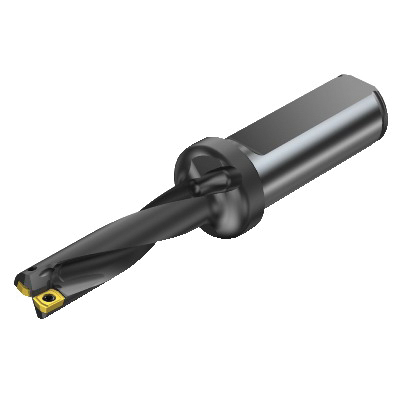

Sandvik Coromant 5765540 CoroDrill® 880 Insert Drill, 2.244 in Drill, 1.9685 in Shank, 13.8976 in AOL, 8.9763 in D Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765540 CoroDrill® 880 Insert Drill, 2.244 in Drill, 1.9685 in Shank, 13.8976 in AOL, 8.9763 in D Maximum Drill, 4
SKU1253169
MFGR #5765540
Your Cost: $1,543.60/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 2.244 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 8.9763 in Maximum Drill Depth, 13.8976 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-090608H-C-GM (MIIDM) and 880-0906W08H-P-GM (MIIDM), 8.9763 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 2.244 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 8.9763 in Maximum Drill Depth, 13.8976 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-090608H-C-GM (MIIDM) and 880-0906W08H-P-GM (MIIDM), 8.9763 in Flute Length
Alternate Catalog Number 880-D5700L50-04 Catalog Number 5765540 Country of Origin SE Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 880 Gross Weight Per Pack 8.5800 lb Item Group 465 Modular Connection Size 1.969 Number of Drill Inserts 50 mm Overall Length 13.8976 in Series CoroDrill® 880 Type 50 mm UPC 11 69826241225 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 353 mm Drill Size 2.244 in Flute Length 8.9763 in Insert Compatibility 880-090608H-C-GM (MIIDM) and 880-0906W08H-P-GM (MIIDM) Maximum Drill Depth 8.9763 in Shank Diameter 1.9685 in Shank Length 57 mm Shank Type Cylinder 272.1324 mm L functional 57 mm Dia body 80 mm L clamping 0.8676 mm L point 5000 r/min 0 - 0.45 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 17.5 deg right hand helix flute 5 deg rake orthogonal 47.8 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 267.8 mm L chip flute 20 life cycle state 234 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D5700L50-04 |
| Catalog Number | 5765540 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 8.5800 lb |
| Item Group | 465 |
| Modular Connection Size | 1.969 |
| Number of Drill Inserts | 50 mm |
| Overall Length | 13.8976 in |
| Series | CoroDrill® 880 |
| Type | 50 mm |
| UPC 11 | 69826241225 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 353 mm |
| Drill Size | 2.244 in |
| Flute Length | 8.9763 in |
| Insert Compatibility | 880-090608H-C-GM (MIIDM) and 880-0906W08H-P-GM (MIIDM) |
| Maximum Drill Depth | 8.9763 in |
| Shank Diameter | 1.9685 in |
| Shank Length | 57 mm |
| Shank Type | Cylinder |
| 272.1324 mm L functional |
| 57 mm Dia body |
| 80 mm L clamping |
| 0.8676 mm L point |
| 5000 r/min |
| 0 - 0.45 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 17.5 deg right hand helix flute |
| 5 deg rake orthogonal |
| 47.8 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 267.8 mm L chip flute |
| 20 life cycle state |
| 234 mm L steel body |
