Sandvik Coromant
Sandvik Coromant 5765461 CoroDrill® 880 Insert Drill, 1.6929 in Drill, 1.9685 in Shank, 6.7716 in Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant

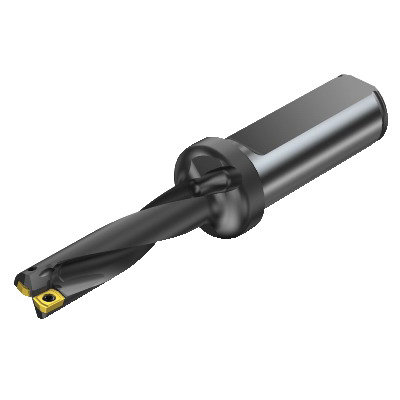

Sandvik Coromant 5765461 CoroDrill® 880 Insert Drill, 1.6929 in Drill, 1.9685 in Shank, 6.7716 in Maximum Drill, 4
SKU1253155
MFGR #5765461
Your Cost: $1,292.72/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.6929 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 6.7716 in Maximum Drill Depth, 11.2992 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 6.7716 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.6929 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 6.7716 in Maximum Drill Depth, 11.2992 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 6.7716 in Flute Length
Alternate Catalog Number 880-D4300L50-04 Catalog Number 5765461 Country of Origin SE Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 880 Gross Weight Per Pack 5.5000 lb Item Group 465 Modular Connection Size 1.969 Number of Drill Inserts 50 mm Overall Length 11.2992 in Series CoroDrill® 880 Type CoroDrill® 880 UPC 11 69826235922 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 50 mm Drill Size 1.6929 in Flute Length 6.7716 in Insert Compatibility 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM) Maximum Drill Depth 6.7716 in Shank Diameter 1.9685 in Shank Length 172 mm Shank Type Cylinder 206.3074 mm L functional 50 mm Dia body 80 mm L clamping 0.6926 mm L point 11000 r/min 0 - 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 17.5 deg right hand helix flute 5 deg rake orthogonal 47.8 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 201.4 mm L chip flute 20 life cycle state 176 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D4300L50-04 |
| Catalog Number | 5765461 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 5.5000 lb |
| Item Group | 465 |
| Modular Connection Size | 1.969 |
| Number of Drill Inserts | 50 mm |
| Overall Length | 11.2992 in |
| Series | CoroDrill® 880 |
| Type | CoroDrill® 880 |
| UPC 11 | 69826235922 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 50 mm |
| Drill Size | 1.6929 in |
| Flute Length | 6.7716 in |
| Insert Compatibility | 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 6.7716 in |
| Shank Diameter | 1.9685 in |
| Shank Length | 172 mm |
| Shank Type | Cylinder |
| 206.3074 mm L functional |
| 50 mm Dia body |
| 80 mm L clamping |
| 0.6926 mm L point |
| 11000 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 17.5 deg right hand helix flute |
| 5 deg rake orthogonal |
| 47.8 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 201.4 mm L chip flute |
| 20 life cycle state |
| 176 mm L steel body |
