Sandvik Coromant

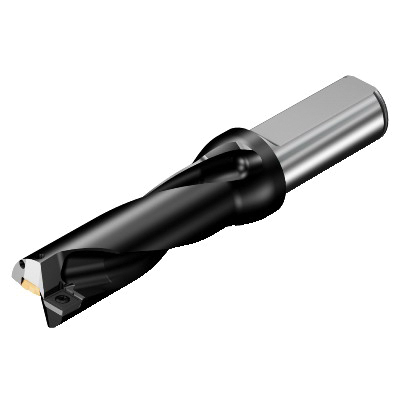

Sandvik Coromant 5765405 CoroDrill® 880 Insert Drill, 1.3582 in Drill, 1.5748 in Shank, 8.0315 in AOL, 4.0944 in D Maximum Drill, 3.014
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765405 CoroDrill® 880 Insert Drill, 1.3582 in Drill, 1.5748 in Shank, 8.0315 in AOL, 4.0944 in D Maximum Drill, 3.014
SKU1253750
MFGR #5765405
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.3582 in Drill, 1.5748 in Shank Dia, Cylinder Shank, 4.0944 in Maximum Drill Depth, 8.0315 in Overall Length, 3.014 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 4.0944 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.3582 in Drill, 1.5748 in Shank Dia, Cylinder Shank, 4.0944 in Maximum Drill Depth, 8.0315 in Overall Length, 3.014 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 4.0944 in Flute Length
Alternate Catalog Number 880-D3450L40-03 Catalog Number 5765405 Country of Origin SE Drill Depth by Diameter Ratio 3.014 Gage Insert CoroDrill® 880 Gross Weight Per Pack 2.6400 lb Item Group 465 Number of Drill Inserts 40 mm Overall Length 8.0315 in Series CoroDrill® 880 Type 34.5 mm UPC 11 69826235810 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 104 mm Drill Size 1.3582 in Flute Length 4.0944 in Insert Compatibility 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) Maximum Drill Depth 4.0944 in Shank Diameter 1.5748 in Shank Length CoroDrill® 880 Shank Type Cylinder 133.3754 mm L functional 40 mm Dia body 70 mm L clamping 0.6246 mm L point 16000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 38 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 128.3 mm L chip flute 20 life cycle state 108 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D3450L40-03 |
| Catalog Number | 5765405 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 3.014 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 2.6400 lb |
| Item Group | 465 |
| Number of Drill Inserts | 40 mm |
| Overall Length | 8.0315 in |
| Series | CoroDrill® 880 |
| Type | 34.5 mm |
| UPC 11 | 69826235810 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 104 mm |
| Drill Size | 1.3582 in |
| Flute Length | 4.0944 in |
| Insert Compatibility | 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 4.0944 in |
| Shank Diameter | 1.5748 in |
| Shank Length | CoroDrill® 880 |
| Shank Type | Cylinder |
| 133.3754 mm L functional |
| 40 mm Dia body |
| 70 mm L clamping |
| 0.6246 mm L point |
| 16000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 38 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 128.3 mm L chip flute |
| 20 life cycle state |
| 108 mm L steel body |
