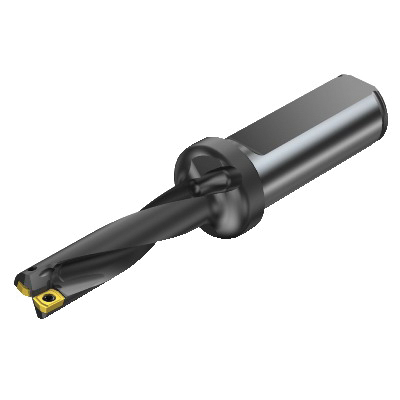

Sandvik Coromant 5765342 CoroDrill® 880 Insert Drill, 0.7086 in Drill, 0.9842 in Shank, 2.8346 in Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant 5765342 CoroDrill® 880 Insert Drill, 0.7086 in Drill, 0.9842 in Shank, 2.8346 in Maximum Drill, 4
SKU339155
MFGR #5765342
Your Cost: $848.52/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.7086 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 2.8346 in Maximum Drill Depth, 5.7874 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 2.8346 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.7086 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 2.8346 in Maximum Drill Depth, 5.7874 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 2.8346 in Flute Length
Alternate Catalog Number 880-D1800L25-04 Catalog Number 5765342 Country of Origin SE Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.6600 lb Item Group 465 Number of Drill Inserts 25 mm Overall Length 5.7874 in Series CoroDrill® 880 Type 147 mm UPC 11 69826231233 UPC 12 69826231233 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 25 mm Drill Size 0.7086 in Flute Length 2.8346 in Insert Compatibility 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) Maximum Drill Depth 2.8346 in Shank Diameter 0.9842 in Shank Length 4 Shank Type Cylinder 90.6553 mm L functional 25 mm Dia body 56 mm L clamping 0.3447 mm L point 19000 r/min 0 - 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 17.5 deg right hand helix flute 5 deg rake orthogonal 23 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 85.4 mm L chip flute 20 life cycle state 75 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 880-D1800L25-04 |
| Catalog Number | 5765342 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.6600 lb |
| Item Group | 465 |
| Number of Drill Inserts | 25 mm |
| Overall Length | 5.7874 in |
| Series | CoroDrill® 880 |
| Type | 147 mm |
| UPC 11 | 69826231233 |
| UPC 12 | 69826231233 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 25 mm |
| Drill Size | 0.7086 in |
| Flute Length | 2.8346 in |
| Insert Compatibility | 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 2.8346 in |
| Shank Diameter | 0.9842 in |
| Shank Length | 4 |
| Shank Type | Cylinder |
| 90.6553 mm L functional |
| 25 mm Dia body |
| 56 mm L clamping |
| 0.3447 mm L point |
| 19000 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 17.5 deg right hand helix flute |
| 5 deg rake orthogonal |
| 23 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 85.4 mm L chip flute |
| 20 life cycle state |
| 75 mm L steel body |
