Sandvik Coromant

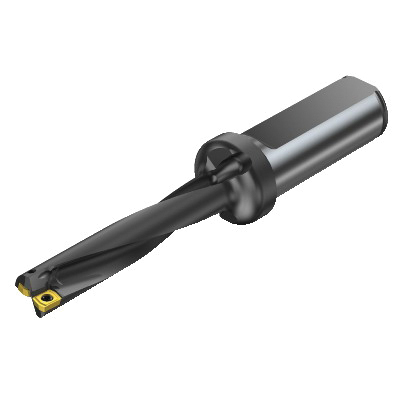

Sandvik Coromant 5765337 CoroDrill® 880 Insert Drill, 1.1811 in Drill, 1.2598 in Shank, 9.3307 in AOL, 5.9055 in D Maximum Drill, 5
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765337 CoroDrill® 880 Insert Drill, 1.1811 in Drill, 1.2598 in Shank, 9.3307 in AOL, 5.9055 in D Maximum Drill, 5
SKU1253688
MFGR #5765337
Your Cost: $1,205.61/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.1811 in Drill, 1.2598 in Shank Dia, Cylinder Shank, 5.9055 in Maximum Drill Depth, 9.3307 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 5.9055 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.1811 in Drill, 1.2598 in Shank Dia, Cylinder Shank, 5.9055 in Maximum Drill Depth, 9.3307 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 5.9055 in Flute Length
Alternate Catalog Number 880-D3000L32-05 Catalog Number 5765337 Country of Origin SE Drill Depth by Diameter Ratio 5 Gage Insert CoroDrill® 880 Gross Weight Per Pack 1.9800 lb Item Group 465 Modular Connection Size 1.26 Number of Drill Inserts 32 mm Overall Length 9.3307 in Series CoroDrill® 880 Type 32 mm UPC 11 69826235771 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 5 Drill Size 1.1811 in Flute Length 5.9055 in Insert Compatibility 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) Maximum Drill Depth 5.9055 in Shank Diameter 1.2598 in Shank Length 237 mm Shank Type Cylinder 176.4834 mm L functional 32 mm Dia body 60 mm L clamping 0.5166 mm L point 9500 r/min 0 - 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 13 deg right hand helix flute 5 deg rake orthogonal 30 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 171.6 mm L chip flute 20 life cycle state 154 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D3000L32-05 |
| Catalog Number | 5765337 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 5 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 1.9800 lb |
| Item Group | 465 |
| Modular Connection Size | 1.26 |
| Number of Drill Inserts | 32 mm |
| Overall Length | 9.3307 in |
| Series | CoroDrill® 880 |
| Type | 32 mm |
| UPC 11 | 69826235771 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 5 |
| Drill Size | 1.1811 in |
| Flute Length | 5.9055 in |
| Insert Compatibility | 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 5.9055 in |
| Shank Diameter | 1.2598 in |
| Shank Length | 237 mm |
| Shank Type | Cylinder |
| 176.4834 mm L functional |
| 32 mm Dia body |
| 60 mm L clamping |
| 0.5166 mm L point |
| 9500 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 13 deg right hand helix flute |
| 5 deg rake orthogonal |
| 30 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 171.6 mm L chip flute |
| 20 life cycle state |
| 154 mm L steel body |
