Sandvik Coromant

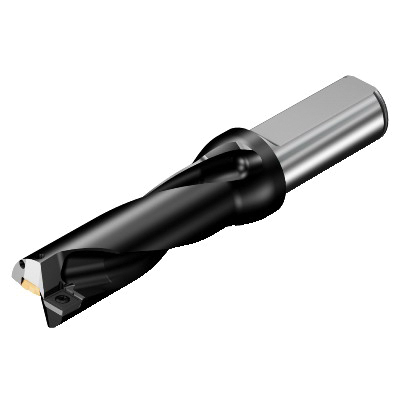

Sandvik Coromant 5765314 CoroDrill® 880 Insert Drill, 1.2401 in Drill, 1.5748 in Shank, 7.559 in AOL, 3.7401 in D Maximum Drill, 3.01587
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765314 CoroDrill® 880 Insert Drill, 1.2401 in Drill, 1.5748 in Shank, 7.559 in AOL, 3.7401 in D Maximum Drill, 3.01587
SKU1253797
MFGR #5765314
Your Cost: $1,003.52/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.2401 in Drill, 1.5748 in Shank Dia, Cylinder Shank, 3.7401 in Maximum Drill Depth, 7.559 in Overall Length, 3.01587 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 3.7401 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1.2401 in Drill, 1.5748 in Shank Dia, Cylinder Shank, 3.7401 in Maximum Drill Depth, 7.559 in Overall Length, 3.01587 Drill Depth by Dia Ratio, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 3.7401 in Flute Length
Alternate Catalog Number 880-D3150L40-03 Catalog Number 5765314 Country of Origin SE Drill Depth by Diameter Ratio 3.01587 Gage Insert CoroDrill® 880 Gross Weight Per Pack 2.4200 lb Item Group 465 Modular Connection Size 1.575 Number of Drill Inserts 40 mm Overall Length 7.559 in Series CoroDrill® 880 Type 3.01587 UPC 11 69826235781 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter CoroDrill® 880 Drill Size 1.2401 in Flute Length 3.7401 in Insert Compatibility 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) Maximum Drill Depth 3.7401 in Shank Diameter 1.5748 in Shank Length 192 mm Shank Type Cylinder 121.3994 mm L functional 40 mm Dia body 70 mm L clamping 0.6006 mm L point 16000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 38 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 116.5 mm L chip flute 20 life cycle state 98 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D3150L40-03 |
| Catalog Number | 5765314 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 3.01587 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 2.4200 lb |
| Item Group | 465 |
| Modular Connection Size | 1.575 |
| Number of Drill Inserts | 40 mm |
| Overall Length | 7.559 in |
| Series | CoroDrill® 880 |
| Type | 3.01587 |
| UPC 11 | 69826235781 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | CoroDrill® 880 |
| Drill Size | 1.2401 in |
| Flute Length | 3.7401 in |
| Insert Compatibility | 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 3.7401 in |
| Shank Diameter | 1.5748 in |
| Shank Length | 192 mm |
| Shank Type | Cylinder |
| 121.3994 mm L functional |
| 40 mm Dia body |
| 70 mm L clamping |
| 0.6006 mm L point |
| 16000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 38 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 116.5 mm L chip flute |
| 20 life cycle state |
| 98 mm L steel body |
