Sandvik Coromant

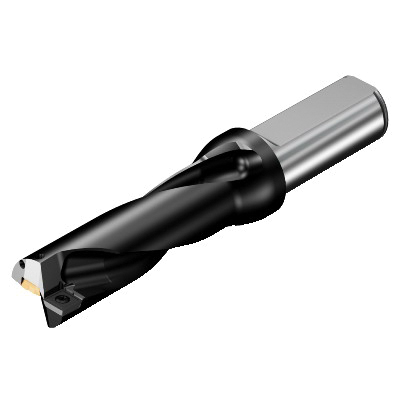

Sandvik Coromant 5765313 CoroDrill® 880 Insert Drill, 0.7677 in Drill, 0.9842 in Shank, 5.3149 in AOL, 2.3228 in D Maximum Drill, 3.02564
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765313 CoroDrill® 880 Insert Drill, 0.7677 in Drill, 0.9842 in Shank, 5.3149 in AOL, 2.3228 in D Maximum Drill, 3.02564
SKU1172585
MFGR #5765313
Your Cost: $706.56/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.7677 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 2.3228 in Maximum Drill Depth, 5.3149 in Overall Length, 3.02564 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 2.3228 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.7677 in Drill, 0.9842 in Shank Dia, Cylinder Shank, 2.3228 in Maximum Drill Depth, 5.3149 in Overall Length, 3.02564 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 2.3228 in Flute Length
Alternate Catalog Number 880-D1950L25-03 Catalog Number 5765313 Country of Origin SE Drill Depth by Diameter Ratio 3.02564 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.6600 lb Item Group 465 Modular Connection Size 0.984 Number of Drill Inserts 25 mm Overall Length 5.3149 in Series CoroDrill® 880 Type 135 mm UPC 11 69826231241 UPC 12 69826231241 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 3.02564 Drill Size 0.7677 in Flute Length 2.3228 in Insert Compatibility 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) Maximum Drill Depth 2.3228 in Shank Diameter 0.9842 in Shank Length 880-030305H-C-GM(MIIDM),880-0303W05H-P-GM(MIIDM) Shank Type Cylinder 78.6144 mm L functional 25 mm Dia body 56 mm L clamping 0.3856 mm L point 30000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 23 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 73.3 mm L chip flute 20 life cycle state 62 mm L steel body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 880-D1950L25-03 |
| Catalog Number | 5765313 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 3.02564 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.6600 lb |
| Item Group | 465 |
| Modular Connection Size | 0.984 |
| Number of Drill Inserts | 25 mm |
| Overall Length | 5.3149 in |
| Series | CoroDrill® 880 |
| Type | 135 mm |
| UPC 11 | 69826231241 |
| UPC 12 | 69826231241 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 3.02564 |
| Drill Size | 0.7677 in |
| Flute Length | 2.3228 in |
| Insert Compatibility | 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 2.3228 in |
| Shank Diameter | 0.9842 in |
| Shank Length | 880-030305H-C-GM(MIIDM),880-0303W05H-P-GM(MIIDM) |
| Shank Type | Cylinder |
| 78.6144 mm L functional |
| 25 mm Dia body |
| 56 mm L clamping |
| 0.3856 mm L point |
| 30000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 23 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 73.3 mm L chip flute |
| 20 life cycle state |
| 62 mm L steel body |
