Sandvik Coromant

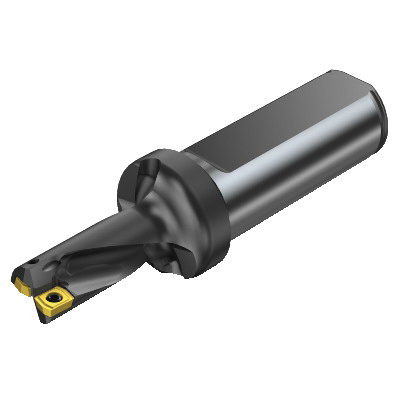

Sandvik Coromant 5765278 CoroDrill® 880 Insert Drill, 0.6692 in Drill, 0.7874 in Shank, 4.0551 in AOL, 1.3385 in D Maximum Drill, 2
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765278 CoroDrill® 880 Insert Drill, 0.6692 in Drill, 0.7874 in Shank, 4.0551 in AOL, 1.3385 in D Maximum Drill, 2
SKU1254414
MFGR #5765278
Your Cost: $686.43/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.6692 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 1.3385 in Maximum Drill Depth, 4.0551 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 1.3385 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.6692 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 1.3385 in Maximum Drill Depth, 4.0551 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM), 1.3385 in Flute Length
Alternate Catalog Number 880-D1700L20-02 Catalog Number 5765278 Country of Origin SE Drill Depth by Diameter Ratio 2 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.4400 lb Item Group 465 Modular Connection Size 0.787 Number of Drill Inserts 20 mm Overall Length 4.0551 in Series CoroDrill® 880 Type 34 mm UPC 11 69826231225 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 2 Drill Size 0.6692 in Flute Length 1.3385 in Insert Compatibility 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) Maximum Drill Depth 1.3385 in Shank Diameter 0.7874 in Shank Length Cylindrical Shank Type Cylinder 52.6326 mm L functional 20 mm Dia body 50 mm L clamping 0.3674 mm L point 33000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 18.2 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 47.8 mm L chip flute 20 life cycle state 38 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D1700L20-02 |
| Catalog Number | 5765278 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 2 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.4400 lb |
| Item Group | 465 |
| Modular Connection Size | 0.787 |
| Number of Drill Inserts | 20 mm |
| Overall Length | 4.0551 in |
| Series | CoroDrill® 880 |
| Type | 34 mm |
| UPC 11 | 69826231225 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 2 |
| Drill Size | 0.6692 in |
| Flute Length | 1.3385 in |
| Insert Compatibility | 880-030305H-C-GM (MIIDM) and 880-0303W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 1.3385 in |
| Shank Diameter | 0.7874 in |
| Shank Length | Cylindrical |
| Shank Type | Cylinder |
| 52.6326 mm L functional |
| 20 mm Dia body |
| 50 mm L clamping |
| 0.3674 mm L point |
| 33000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 18.2 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 47.8 mm L chip flute |
| 20 life cycle state |
| 38 mm L steel body |
