Sandvik Coromant

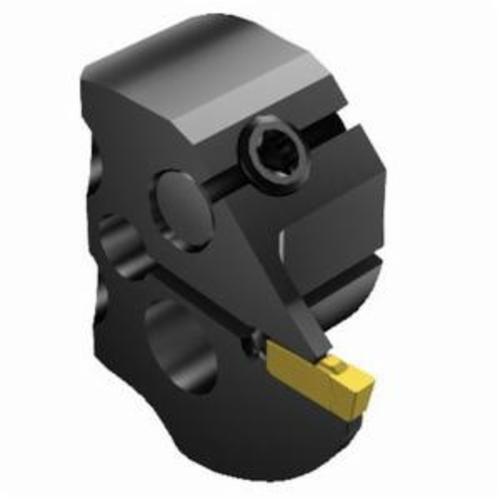

Sandvik Coromant 5765163 T-Max® Q-Cut SL Series, Steel, Right Hand, 0.3937 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765163 T-Max® Q-Cut SL Series, Steel, Right Hand, 0.3937 in Max Depth of Cut
SKU1252050
MFGR #5765163
Your Cost: $273.12/ea
Sandvik Coromant Grooving Head, SL Series, Series: T-Max® Q-Cut, Right Hand Cutting, 0.3937 in Maximum Depth of Cut, 0.5511 in Head Length/Projection, Steel
Sandvik Coromant Grooving Head, SL Series, Series: T-Max® Q-Cut, Right Hand Cutting, 0.3937 in Maximum Depth of Cut, 0.5511 in Head Length/Projection, Steel
Additional Spare Parts Clamping Nut 5534021-01 Torque wrench 5680100-06 Alternate Catalog Number 570-32R151.3-10-50 Catalog Number 5765163 Clamp Screw 5513017-02 Coolant Nozzle 5691041-03 Coolant Supply Internal Country of Origin SE Finish SL Functional Width 1.087 Gross Weight Per Pack 0.24200 lb Head Length|Projection 0.5511 in Insert Width Steel Item Group 420 Key 5680049-02 Material Steel Max Depth 0 Program Width 1.087 Series T-Max® Q-Cut Size Right Hand UPC 11 69826227313 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Maximum Depth of Cut 0.3937 in Type SL Series Screw mounted machine side adaptive interface 20 life cycle state 90 deg body workpiece side Axial concentric entry 10 bar coolant Axial inclined exit with nozzle, adjustable 32 mm Dia connection 48.8 mm Dia minimum bore 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 11 mm length to cutting item reference point N151.3-600-50- 7G compatible insert 17.8 mm OAL 11 mm overhang 50 mm insert seat 3 Nm torque 570-xxR/L151.3 tool style 27.6 mm W functional ANSI Code: 570-32R151.3-10-50
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Additional Spare Parts | Clamping Nut 5534021-01 Torque wrench 5680100-06 |
| Alternate Catalog Number | 570-32R151.3-10-50 |
| Catalog Number | 5765163 |
| Clamp Screw | 5513017-02 |
| Coolant Nozzle | 5691041-03 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | SL |
| Functional Width | 1.087 |
| Gross Weight Per Pack | 0.24200 lb |
| Head Length|Projection | 0.5511 in |
| Insert Width | Steel |
| Item Group | 420 |
| Key | 5680049-02 |
| Material | Steel |
| Max Depth | 0 |
| Program Width | 1.087 |
| Series | T-Max® Q-Cut |
| Size | Right Hand |
| UPC 11 | 69826227313 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut | 0.3937 in |
| Type | SL Series |
| Screw mounted machine side adaptive interface |
| 20 life cycle state |
| 90 deg body workpiece side |
| Axial concentric entry |
| 10 bar coolant |
| Axial inclined exit with nozzle, adjustable |
| 32 mm Dia connection |
| 48.8 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 11 mm length to cutting item reference point |
| N151.3-600-50- 7G compatible insert |
| 17.8 mm OAL |
| 11 mm overhang |
| 50 mm insert seat |
| 3 Nm torque |
| 570-xxR/L151.3 tool style |
| 27.6 mm W functional |
| ANSI Code: 570-32R151.3-10-50 |
