Sandvik Coromant

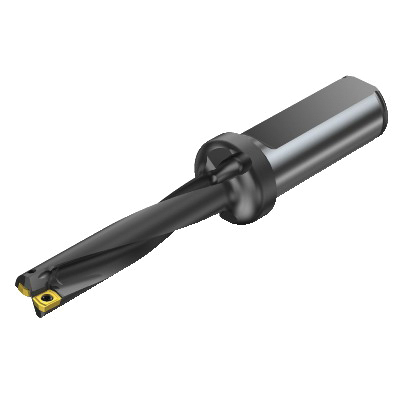

Sandvik Coromant 5765138 CoroDrill® 880 Insert Drill, 0.5708 in Drill, 0.7874 in Shank, 5.4724 in AOL, 2.874 in D Maximum Drill, 5.03448
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765138 CoroDrill® 880 Insert Drill, 0.5708 in Drill, 0.7874 in Shank, 5.4724 in AOL, 2.874 in D Maximum Drill, 5.03448
SKU1253525
MFGR #5765138
Your Cost: $943.12/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.5708 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 2.874 in Maximum Drill Depth, 5.4724 in Overall Length, 5.03448 Drill Depth by Dia Ratio, Insert Compatibility: 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM), 2.874 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 0.5708 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 2.874 in Maximum Drill Depth, 5.4724 in Overall Length, 5.03448 Drill Depth by Dia Ratio, Insert Compatibility: 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM), 2.874 in Flute Length
Alternate Catalog Number 880-D1450L20-05 Catalog Number 5765138 Country of Origin SE Drill Depth by Diameter Ratio 5.03448 Gage Insert CoroDrill® 880 Gross Weight Per Pack 0.4400 lb Item Group 465 Modular Connection Size 0.787 Number of Drill Inserts 20 mm Overall Length 5.4724 in Series CoroDrill® 880 Type 20 mm UPC 11 69826235729 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 73 mm Drill Size 0.5708 in Flute Length 2.874 in Insert Compatibility 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM) Maximum Drill Depth 2.874 in Shank Diameter 0.7874 in Shank Length 139 mm Shank Type Cylinder 88.7345 mm L functional 20 mm Dia body 50 mm L clamping 0.2655 mm L point 15000 r/min 0 - 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 13 deg right hand helix flute 5 deg rake orthogonal 18.2 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 83.3 mm L chip flute 20 life cycle state 75 mm L steel body
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D1450L20-05 |
| Catalog Number | 5765138 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 5.03448 |
| Gage Insert | CoroDrill® 880 |
| Gross Weight Per Pack | 0.4400 lb |
| Item Group | 465 |
| Modular Connection Size | 0.787 |
| Number of Drill Inserts | 20 mm |
| Overall Length | 5.4724 in |
| Series | CoroDrill® 880 |
| Type | 20 mm |
| UPC 11 | 69826235729 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 73 mm |
| Drill Size | 0.5708 in |
| Flute Length | 2.874 in |
| Insert Compatibility | 880-020204H-C-GM (MIIDM) and 880-0202W04H-P-GM (MIIDM) |
| Maximum Drill Depth | 2.874 in |
| Shank Diameter | 0.7874 in |
| Shank Length | 139 mm |
| Shank Type | Cylinder |
| 88.7345 mm L functional |
| 20 mm Dia body |
| 50 mm L clamping |
| 0.2655 mm L point |
| 15000 r/min |
| 0 - 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 13 deg right hand helix flute |
| 5 deg rake orthogonal |
| 18.2 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 83.3 mm L chip flute |
| 20 life cycle state |
| 75 mm L steel body |
