Sandvik Coromant

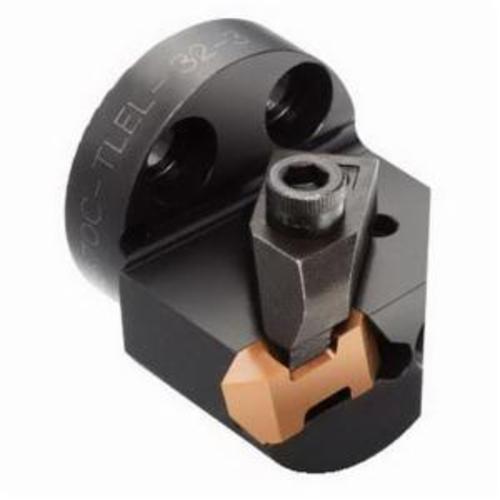

Sandvik Coromant 5765048 Top-Lok® SL Head, Right Hand, TLG-3189L Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765048 Top-Lok® SL Head, Right Hand, TLG-3189L Insert
SKU1251853
MFGR #5765048
Your Cost: $717.53/ea
Sandvik Coromant Grooving Head, SL Head, Series: Top-Lok®, 570C-TLER-40-3, Right Hand Cutting, Insert Compatibility: TLG-3189L, 0.1889 in Maximum Depth of Cut, 1.5748 in Head Length, 1.102 in Center to Cutting Edge, Steel
Sandvik Coromant Grooving Head, SL Head, Series: Top-Lok®, 570C-TLER-40-3, Right Hand Cutting, Insert Compatibility: TLG-3189L, 0.1889 in Maximum Depth of Cut, 1.5748 in Head Length, 1.102 in Center to Cutting Edge, Steel
Alternate Catalog Number 570C-TLER-40-3 Catalog Number 5765048 Country of Origin US Finish Right Hand, SL Geometry 570C-TLER-40-3 Gross Weight Per Pack 0.44000 lb Head Length 1.5748 in Item Group 415 Material Steel Series Top-Lok® System Size 4.8 mm UPC 11 69826200666 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.102 in Cutting Direction Right Hand Insert Compatibility TLG-3189L Maximum Depth of Cut 0.1889 in Minimum Groove Width Right Hand Type SL Head Screw mounted machine side adaptive interface 90 deg body workpiece side Without coolant entry No coolant exit 40 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 40 mm length to cutting item reference point 43.8 mm OAL 40 mm overhang ANSI Code: 570C-TLER-40-3 ISO Code: 570C-TLER-40-3
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 570C-TLER-40-3 |
| Catalog Number | 5765048 |
| Country of Origin | US |
| Finish | Right Hand, SL |
| Geometry | 570C-TLER-40-3 |
| Gross Weight Per Pack | 0.44000 lb |
| Head Length | 1.5748 in |
| Item Group | 415 |
| Material | Steel |
| Series | Top-Lok® |
| System Size | 4.8 mm |
| UPC 11 | 69826200666 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.102 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | TLG-3189L |
| Maximum Depth of Cut | 0.1889 in |
| Minimum Groove Width | Right Hand |
| Type | SL Head |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| Without coolant entry |
| No coolant exit |
| 40 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 40 mm length to cutting item reference point |
| 43.8 mm OAL |
| 40 mm overhang |
| ANSI Code: 570C-TLER-40-3 |
| ISO Code: 570C-TLER-40-3 |
