Sandvik Coromant

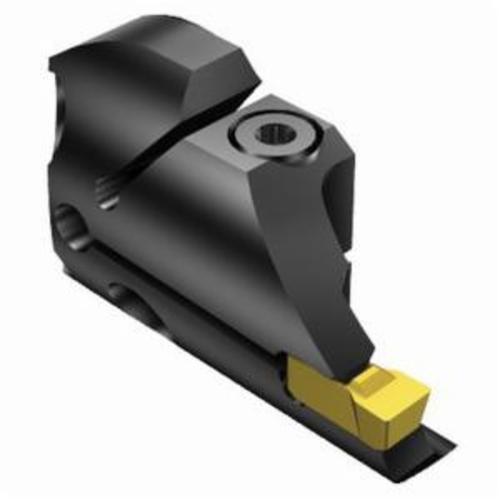

Sandvik Coromant 5765022 T-Max® Q-Cut SL, Right Hand, 1.0629 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765022 T-Max® Q-Cut SL, Right Hand, 1.0629 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
SKU1251988
MFGR #5765022
Your Cost: $325.09/ea
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.0629 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.0629 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Catalog Number 5765022 Clamp Screw 3212012-310 Coolant Nozzle 5691041-03 Coolant Supply Internal Country of Origin SE Finish T-Max® Q-Cut Gross Weight Per Pack 0.1100 lb Key 5680043-15 Material Steel Max Depth 0 Maximum Workpiece Diameter 1.7716 in Minimum Workpiece Diameter 1.0629 in Series T-Max® Q-Cut Type SL UPC 11 69826231200 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Blade Height 27 mm Blade Thickness Steel Blade Width 5758636 Screw, 5764104 Key and 5764312 Coolant Tube Cutting Direction Right Hand Groove Width Right Hand Maximum Depth of Cut 8.686 Screw mounted machine side adaptive interface 90 deg body workpiece side 8.686 mm D maximum cutting Axial concentric coolant entry 10 bar coolant Radial coolant exit 32 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 14 mm L functional 12 mm length to cutting item reference point N151.3-400-30- 7G compatible insert 17.8 mm OAL 14 mm overhang 3.5 Nm torque 570-xxR/L151.3..A tool style 43.1 mm W functional ANSI Code: 570-32R151.3-027A30
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5765022 |
| Clamp Screw | 3212012-310 |
| Coolant Nozzle | 5691041-03 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | T-Max® Q-Cut |
| Gross Weight Per Pack | 0.1100 lb |
| Key | 5680043-15 |
| Material | Steel |
| Max Depth | 0 |
| Maximum Workpiece Diameter | 1.7716 in |
| Minimum Workpiece Diameter | 1.0629 in |
| Series | T-Max® Q-Cut |
| Type | SL |
| UPC 11 | 69826231200 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Blade Height | 27 mm |
| Blade Thickness | Steel |
| Blade Width | 5758636 Screw, 5764104 Key and 5764312 Coolant Tube |
| Cutting Direction | Right Hand |
| Groove Width | Right Hand |
| Maximum Depth of Cut | 8.686 |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| 8.686 mm D maximum cutting |
| Axial concentric coolant entry |
| 10 bar coolant |
| Radial coolant exit |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 14 mm L functional |
| 12 mm length to cutting item reference point |
| N151.3-400-30- 7G compatible insert |
| 17.8 mm OAL |
| 14 mm overhang |
| 3.5 Nm torque |
| 570-xxR/L151.3..A tool style |
| 43.1 mm W functional |
| ANSI Code: 570-32R151.3-027A30 |
