Sandvik Coromant
Sandvik Coromant 5765018 T-Max® Q-Cut SL, Right Hand, 0.9842 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5765018 T-Max® Q-Cut SL, Right Hand, 0.9842 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
SKU1251983
MFGR #5765018
Your Cost: $306.29/ea

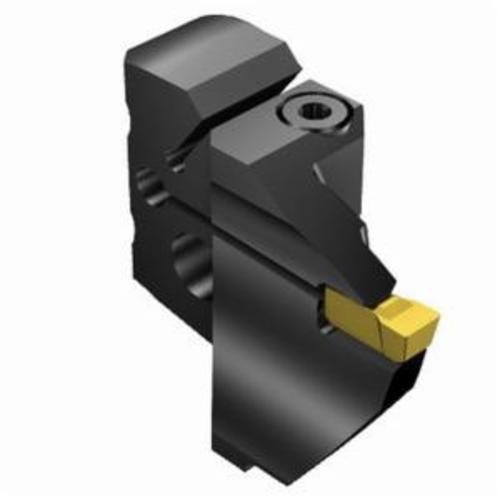

Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 0.9842 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 0.9842 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Catalog Number 5765018 Clamp Screw 3212012-310 Coolant Nozzle 5691041-02 Coolant Supply Internal Country of Origin SE Finish T-Max® Q-Cut Gross Weight Per Pack 0.1600 lb Key 5680043-15 Material Steel Max Depth 0 Maximum Workpiece Diameter 1.7716 in Minimum Workpiece Diameter 0.9842 in Series T-Max® Q-Cut Type SL UPC 11 69826228500 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Blade Height T-Max® Q-Cut Blade Thickness Steel Blade Width SL Cutting Direction Right Hand Groove Width 1.697 Maximum Depth of Cut 10.693 Screw mounted machine side adaptive interface 90 deg body workpiece side 10.693 mm D maximum cutting Axial concentric coolant entry 10 bar coolant Radial coolant exit 32 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 18 mm L functional 15.5 mm length to cutting item reference point 28.8 mm L protruding N151.3-500-40- 7G compatible insert 32.6 mm OAL 18 mm overhang 3.5 Nm torque 570-xxR/L151.3..B tool style 43.1 mm W functiona
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5765018 |
| Clamp Screw | 3212012-310 |
| Coolant Nozzle | 5691041-02 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | T-Max® Q-Cut |
| Gross Weight Per Pack | 0.1600 lb |
| Key | 5680043-15 |
| Material | Steel |
| Max Depth | 0 |
| Maximum Workpiece Diameter | 1.7716 in |
| Minimum Workpiece Diameter | 0.9842 in |
| Series | T-Max® Q-Cut |
| Type | SL |
| UPC 11 | 69826228500 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Blade Height | T-Max® Q-Cut |
| Blade Thickness | Steel |
| Blade Width | SL |
| Cutting Direction | Right Hand |
| Groove Width | 1.697 |
| Maximum Depth of Cut | 10.693 |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| 10.693 mm D maximum cutting |
| Axial concentric coolant entry |
| 10 bar coolant |
| Radial coolant exit |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 18 mm L functional |
| 15.5 mm length to cutting item reference point |
| 28.8 mm L protruding |
| N151.3-500-40- 7G compatible insert |
| 32.6 mm OAL |
| 18 mm overhang |
| 3.5 Nm torque |
| 570-xxR/L151.3..B tool style |
| 43.1 mm W functiona |
