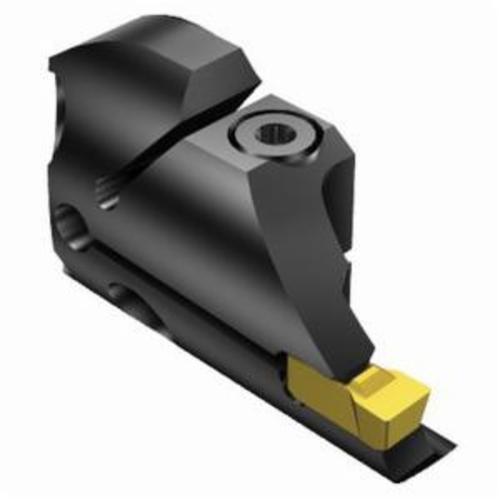

Sandvik Coromant 5764992 T-Max® Q-Cut SL, Right Hand, 1.496 in Dia Min Workpiece, 2.7559 in Dia Max Workpiece
Custom_Product_Images_Illustration
Sandvik Coromant 5764992 T-Max® Q-Cut SL, Right Hand, 1.496 in Dia Min Workpiece, 2.7559 in Dia Max Workpiece
SKU1252051
MFGR #5764992
Your Cost: $306.29/ea
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.496 in Minimum Workpiece Dia, 2.7559 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.496 in Minimum Workpiece Dia, 2.7559 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Catalog Number 5764992 Clamp Screw 3212012-310 Coolant Nozzle 5691041-02 Coolant Supply Internal Country of Origin SE Finish T-Max® Q-Cut Gross Weight Per Pack 0.1500 lb Key 5680043-15 Material Steel Max Depth 1 Maximum Workpiece Diameter 2.7559 in Minimum Workpiece Diameter 1.496 in Series T-Max® Q-Cut Type SL UPC 11 69826231204 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Blade Height Right Hand Blade Thickness Steel Blade Width 70 mm Cutting Direction Right Hand Groove Width SL Screw mounted machine side adaptive interface 90 deg body workpiece side 18.009 mm D maximum cutting Axial concentric coolant entry 10 bar coolant Radial coolant exit 32 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 18 mm L functional 15 mm length to cutting item reference point N151.3-600-50- 7G compatible insert 21.8 mm OAL 18 mm overhang 4 Nm torque 570-xxR/L151.3..A tool style 41.1 mm W functional ANSI Code: 570-32R151.3-038A50
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5764992 |
| Clamp Screw | 3212012-310 |
| Coolant Nozzle | 5691041-02 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | T-Max® Q-Cut |
| Gross Weight Per Pack | 0.1500 lb |
| Key | 5680043-15 |
| Material | Steel |
| Max Depth | 1 |
| Maximum Workpiece Diameter | 2.7559 in |
| Minimum Workpiece Diameter | 1.496 in |
| Series | T-Max® Q-Cut |
| Type | SL |
| UPC 11 | 69826231204 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Blade Height | Right Hand |
| Blade Thickness | Steel |
| Blade Width | 70 mm |
| Cutting Direction | Right Hand |
| Groove Width | SL |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| 18.009 mm D maximum cutting |
| Axial concentric coolant entry |
| 10 bar coolant |
| Radial coolant exit |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 18 mm L functional |
| 15 mm length to cutting item reference point |
| N151.3-600-50- 7G compatible insert |
| 21.8 mm OAL |
| 18 mm overhang |
| 4 Nm torque |
| 570-xxR/L151.3..A tool style |
| 41.1 mm W functional |
| ANSI Code: 570-32R151.3-038A50 |
