Sandvik Coromant

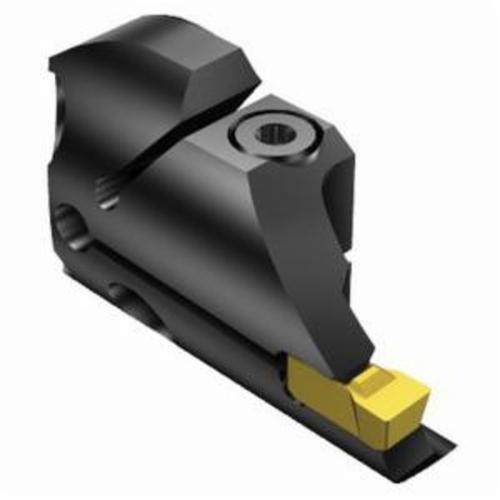

Sandvik Coromant 5764974 T-Max® Q-Cut SL, Right Hand, 1.1417 in Dia Min Workpiece, 1.5748 in Dia Max Workpiece
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5764974 T-Max® Q-Cut SL, Right Hand, 1.1417 in Dia Min Workpiece, 1.5748 in Dia Max Workpiece
SKU1251986
MFGR #5764974
Your Cost: $306.29/ea
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.1417 in Minimum Workpiece Dia, 1.5748 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 1.1417 in Minimum Workpiece Dia, 1.5748 in Maximum Workpiece Dia, Right Hand Cutting, Steel
Catalog Number 5764974 Clamp Screw 3212012-260 Coolant Nozzle 5691041-01 Coolant Supply Internal Country of Origin SE Finish T-Max® Q-Cut Gross Weight Per Pack 0.1000 lb Key 5680043-14 Material Steel Max Depth 0 Maximum Workpiece Diameter 1.5748 in Minimum Workpiece Diameter 1.1417 in Series T-Max® Q-Cut Type SL UPC 11 69826231201 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Blade Height T-Max® Q-Cut Blade Thickness Steel Blade Width Right Hand Cutting Direction Right Hand Groove Width Steel Maximum Depth of Cut 8.686 Screw mounted machine side adaptive interface 90 deg body workpiece side 8.686 mm D maximum cutting Axial concentric coolant entry 10 bar coolant Radial coolant exit 32 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 14 mm L functional 12.5 mm length to cutting item reference point N151.3-300-25- 7G compatible insert 17.8 mm OAL 14 mm overhang 2 Nm torque 570-xxR/L151.3..A tool style 37.4 mm W functional ANSI Code: 570-32R151.3-029A25
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5764974 |
| Clamp Screw | 3212012-260 |
| Coolant Nozzle | 5691041-01 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | T-Max® Q-Cut |
| Gross Weight Per Pack | 0.1000 lb |
| Key | 5680043-14 |
| Material | Steel |
| Max Depth | 0 |
| Maximum Workpiece Diameter | 1.5748 in |
| Minimum Workpiece Diameter | 1.1417 in |
| Series | T-Max® Q-Cut |
| Type | SL |
| UPC 11 | 69826231201 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Blade Height | T-Max® Q-Cut |
| Blade Thickness | Steel |
| Blade Width | Right Hand |
| Cutting Direction | Right Hand |
| Groove Width | Steel |
| Maximum Depth of Cut | 8.686 |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| 8.686 mm D maximum cutting |
| Axial concentric coolant entry |
| 10 bar coolant |
| Radial coolant exit |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 14 mm L functional |
| 12.5 mm length to cutting item reference point |
| N151.3-300-25- 7G compatible insert |
| 17.8 mm OAL |
| 14 mm overhang |
| 2 Nm torque |
| 570-xxR/L151.3..A tool style |
| 37.4 mm W functional |
| ANSI Code: 570-32R151.3-029A25 |
