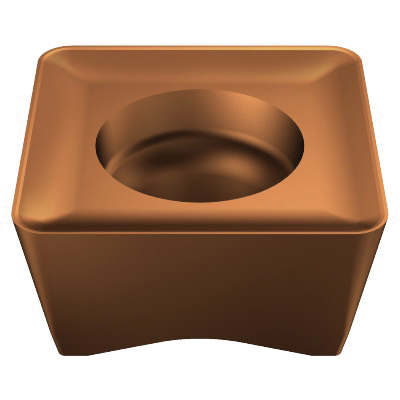

Sandvik Coromant 5764911 CoroMill® 690 Milling Insert, 690-140610M-P-SL 1030, S-Square, 690..P-SL Insert, Carbide, 1030, 690-140610M-P-SL 1030
Custom_Product_Images_Illustration
Sandvik Coromant 5764911 CoroMill® 690 Milling Insert, 690-140610M-P-SL 1030, S-Square, 690..P-SL Insert, Carbide, 1030, 690-140610M-P-SL 1030
SKU1252373
MFGR #5764911
Your Cost: $30.67/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..P-SL Insert, S-Square, 0.5708 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Length, SL Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-140610M-P-SL 1030, ISO Code: 690-140610M-P-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..P-SL Insert, S-Square, 0.5708 in Inscribed Circle, 1/4 in Thickness, 0.5708 in Length, SL Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-140610M-P-SL 1030, ISO Code: 690-140610M-P-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number 690-140610M-P-SL 1030 ANSI Code 690-140610M-P-SL 1030 Catalog Number 5764911 Corner Radius 0.0393 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2165 in Includes 6.35 mm ISO Code 690-140610M-P-SL 1030 Item Group 350 Lead Angle 90 deg Length 0.5708 in Material Application Heat Resistant Alloys Series CoroMill® 690 Thickness 1/4 in Type S UPC 11 69826245345 Width 1030 Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SL Inscribed Circle 0.5708 in Insert Size PVD Coated Insert Style 690..P-SL Manufacturer's Grade 1030 Material Carbide Material Grade S Maximum Depth of Cut S - Square Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 90 deg included 90 deg major cutting edge 13.5 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting 0.05 to 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 690-140610M-P-SL 1030 |
| ANSI Code | 690-140610M-P-SL 1030 |
| Catalog Number | 5764911 |
| Corner Radius | 0.0393 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2165 in |
| Includes | 6.35 mm |
| ISO Code | 690-140610M-P-SL 1030 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.5708 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 690 |
| Thickness | 1/4 in |
| Type | S |
| UPC 11 | 69826245345 |
| Width | 1030 |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SL |
| Inscribed Circle | 0.5708 in |
| Insert Size | PVD Coated |
| Insert Style | 690..P-SL |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | S - Square |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 90 deg included |
| 90 deg major cutting edge |
| 13.5 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
