Sandvik Coromant

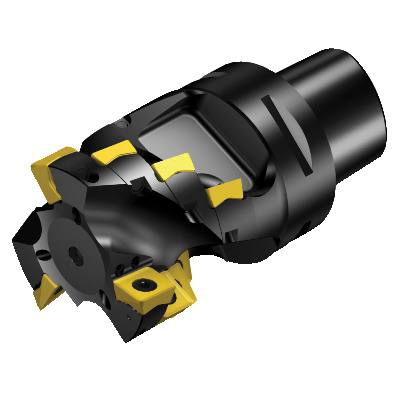

Sandvik Coromant 5764735 CoroMill® 690 Square Shoulder Milling Cutter, 690..Cx Insert, 2.5984 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5764735 CoroMill® 690 Square Shoulder Milling Cutter, 690..Cx Insert, 2.5984 in Cutting, Right Hand
SKU1251958
MFGR #5764735
Your Cost: $6,052.45/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 690, 2.5984 in Cutting Dia, 7.4015 in Overall Length, 4.1338 in Maximum Depth of Cut, 690..Cx Insert, Insert Compatibility: 690-100508E and 690-100510P, 2.4803 in Shank Dia, Right Hand Cutting, ANSI Code: 690-066C6-10105H, ISO Code: 690-066C6-10105H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 690, 2.5984 in Cutting Dia, 7.4015 in Overall Length, 4.1338 in Maximum Depth of Cut, 690..Cx Insert, Insert Compatibility: 690-100508E and 690-100510P, 2.4803 in Shank Dia, Right Hand Cutting, ANSI Code: 690-066C6-10105H, ISO Code: 690-066C6-10105H, Steel
Alternate Catalog Number 690-066C6-10105H ANSI Code 690-066C6-10105H Catalog Number 5764735 Country of Origin SE Finish Square Gross Weight Per Pack 10.1200 lb Head Length 690-066C6-10105H Insert Gage Screw 63 mm ISO Code 690-066C6-10105H Item Group 440 Material Steel Series CoroMill® 690 Type Square UPC 11 69826245331 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.5984 in Cutting Direction Right Hand Insert Compatibility 690-100508E and 690-100510P Insert Style 690..Cx Maximum Depth of Cut 4.1338 in Number of Inserts 188 mm Overall Length 7.4015 in Shank Diameter 2.4803 in Shank Length 690-066C6-10105H Shank Type Square Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 66 mm Dia maximum cutting 90 deg cutting edge 150 mm overhang 0 deg maximum ramping 5000 r/min 3 Nm torque 20 life cycle state 0.25 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 690-066C6-10105H |
| ANSI Code | 690-066C6-10105H |
| Catalog Number | 5764735 |
| Country of Origin | SE |
| Finish | Square |
| Gross Weight Per Pack | 10.1200 lb |
| Head Length | 690-066C6-10105H |
| Insert Gage Screw | 63 mm |
| ISO Code | 690-066C6-10105H |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 690 |
| Type | Square |
| UPC 11 | 69826245331 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.5984 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 690-100508E and 690-100510P |
| Insert Style | 690..Cx |
| Maximum Depth of Cut | 4.1338 in |
| Number of Inserts | 188 mm |
| Overall Length | 7.4015 in |
| Shank Diameter | 2.4803 in |
| Shank Length | 690-066C6-10105H |
| Shank Type | Square |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 66 mm Dia maximum cutting |
| 90 deg cutting edge |
| 150 mm overhang |
| 0 deg maximum ramping |
| 5000 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 0.25 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
