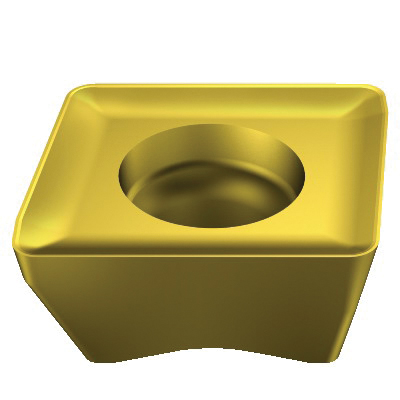

Sandvik Coromant 5764717 CoroMill® 690 Milling Insert, 690-100508M-E-SL 2040, S-Square, 690..E-SL Insert, Carbide, 2040, 690-100508M-E-SL 2040
Custom_Product_Images_Illustration
Sandvik Coromant 5764717 CoroMill® 690 Milling Insert, 690-100508M-E-SL 2040, S-Square, 690..E-SL Insert, Carbide, 2040, 690-100508M-E-SL 2040
SKU1251889
MFGR #5764717
Your Cost: $27.40/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.3937 in Inscribed Circle, 0.1377 in Thickness, 0.3937 in Width, 0.5232 in Length, SL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1771 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 690-100508M-E-SL 2040, ISO Code: 690-100508M-E-SL 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: S
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.3937 in Inscribed Circle, 0.1377 in Thickness, 0.3937 in Width, 0.5232 in Length, SL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1771 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: 690-100508M-E-SL 2040, ISO Code: 690-100508M-E-SL 2040, Right Hand, Carbide, MTCVD Coated, Material Grade: S
Alternate Catalog Number 690-100508M-E-SL 2040 ANSI Code 690-100508M-E-SL 2040 Catalog Number 5764717 Corner Radius 0.0314 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1771 in Included Angle S - Square Includes 5.2 mm ISO Code 690-100508M-E-SL 2040 Item Group 350 Lead Angle 90 deg Length 0.5232 in Material Application Heat Resistant Alloys Series CoroMill® 690 Thickness 0.1377 in Type MTCVD Coated UPC 11 69826245338 Width 0.3937 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SL Inscribed Circle 0.3937 in Insert Size 690..E-SL Insert Style 690..E-SL Manufacturer's Grade 2040 Material Carbide Material Grade S Maximum Depth of Cut 10 mm Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 1 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.05 to 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 690-100508M-E-SL 2040 |
| ANSI Code | 690-100508M-E-SL 2040 |
| Catalog Number | 5764717 |
| Corner Radius | 0.0314 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1771 in |
| Included Angle | S - Square |
| Includes | 5.2 mm |
| ISO Code | 690-100508M-E-SL 2040 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.5232 in |
| Material Application | Heat Resistant Alloys |
| Series | CoroMill® 690 |
| Thickness | 0.1377 in |
| Type | MTCVD Coated |
| UPC 11 | 69826245338 |
| Width | 0.3937 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SL |
| Inscribed Circle | 0.3937 in |
| Insert Size | 690..E-SL |
| Insert Style | 690..E-SL |
| Manufacturer's Grade | 2040 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 10 mm |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
