Sandvik Coromant

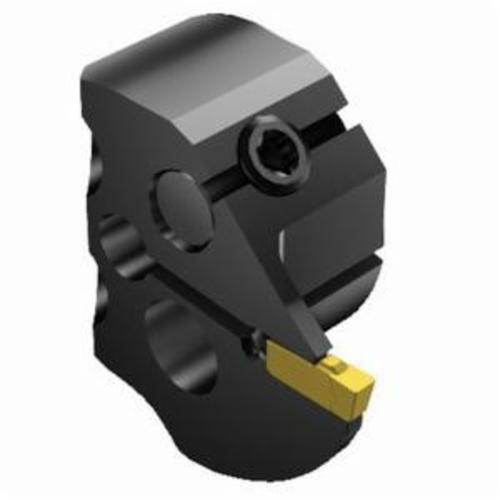

Sandvik Coromant 5764647 T-Max® Q-Cut SL Series, Steel, Left Hand, 0.5118 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5764647 T-Max® Q-Cut SL Series, Steel, Left Hand, 0.5118 in Max Depth of Cut
SKU1252058
MFGR #5764647
Your Cost: $273.12/ea
Sandvik Coromant Grooving Head, SL Series, Series: T-Max® Q-Cut, Left Hand Cutting, 0.5118 in Maximum Depth of Cut, 0.5511 in Head Length/Projection, Steel
Sandvik Coromant Grooving Head, SL Series, Series: T-Max® Q-Cut, Left Hand Cutting, 0.5118 in Maximum Depth of Cut, 0.5511 in Head Length/Projection, Steel
Additional Spare Parts Clamping Nut 5534021-01 Torque wrench 5680100-06 Alternate Catalog Number 570-32L151.3-13-60 Catalog Number 5764647 Clamp Screw 5513017-02 Coolant Nozzle 5691041-03 Coolant Supply Internal Country of Origin SE Finish N151.3-800-60- 4G Functional Width 1.205" Gross Weight Per Pack 0.24200 lb Head Length 0.551 Head Length|Projection 0.5511 in Insert Width 5763384 Clamping Nut, 5764133 Key, 5764312 Coolant Tube and 5856426 Clamping Screw Item Group 420 Key 5680049-02 Material Steel Max Depth 1 Modular Head Style SL Head/Screw Mount Program Width 1.205" Series T-Max® Q-Cut Size T-Max® Q-Cut System Size 1.26 UPC 11 69826227314 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N151.3-800-60-4G Insert Style 570-xxR/L151.3 Maximum Depth of Cut 0.5118 in Minimum Groove Width 1.205 Type SL Series Screw mounted machine side adaptive interface 20 life cycle state 90 deg body workpiece side Axial concentric entry 10 bar coolant Axial inclined exit with nozzle, adjustable 32 mm Dia connection 47.6 mm Dia minimum bore 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 10 mm length to cutting item reference point N151.3-800-60- 4G compatible insert 17.8 mm OAL 10 mm overhang 60 mm insert seat 3 Nm torque 570-xxR/L151.3 tool style 30.6 mm W functional ANSI Code: 570-32L151.3-13-60
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Additional Spare Parts | Clamping Nut 5534021-01 Torque wrench 5680100-06 |
| Alternate Catalog Number | 570-32L151.3-13-60 |
| Catalog Number | 5764647 |
| Clamp Screw | 5513017-02 |
| Coolant Nozzle | 5691041-03 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | N151.3-800-60- 4G |
| Functional Width | 1.205" |
| Gross Weight Per Pack | 0.24200 lb |
| Head Length | 0.551 |
| Head Length|Projection | 0.5511 in |
| Insert Width | 5763384 Clamping Nut, 5764133 Key, 5764312 Coolant Tube and 5856426 Clamping Screw |
| Item Group | 420 |
| Key | 5680049-02 |
| Material | Steel |
| Max Depth | 1 |
| Modular Head Style | SL Head/Screw Mount |
| Program Width | 1.205" |
| Series | T-Max® Q-Cut |
| Size | T-Max® Q-Cut |
| System Size | 1.26 |
| UPC 11 | 69826227314 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N151.3-800-60-4G |
| Insert Style | 570-xxR/L151.3 |
| Maximum Depth of Cut | 0.5118 in |
| Minimum Groove Width | 1.205 |
| Type | SL Series |
| Screw mounted machine side adaptive interface |
| 20 life cycle state |
| 90 deg body workpiece side |
| Axial concentric entry |
| 10 bar coolant |
| Axial inclined exit with nozzle, adjustable |
| 32 mm Dia connection |
| 47.6 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 10 mm length to cutting item reference point |
| N151.3-800-60- 4G compatible insert |
| 17.8 mm OAL |
| 10 mm overhang |
| 60 mm insert seat |
| 3 Nm torque |
| 570-xxR/L151.3 tool style |
| 30.6 mm W functional |
| ANSI Code: 570-32L151.3-13-60 |
