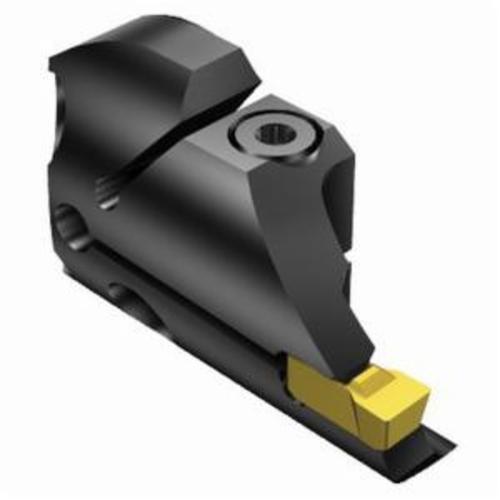

Sandvik Coromant 5764570 T-Max® Q-Cut SL, Left Hand, 0.9842 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
Custom_Product_Images_Illustration
Sandvik Coromant 5764570 T-Max® Q-Cut SL, Left Hand, 0.9842 in Dia Min Workpiece, 1.7716 in Dia Max Workpiece
SKU1252215
MFGR #5764570
Your Cost: $321.77/ea
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 0.9842 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Left Hand Cutting, Steel
Sandvik Coromant Face Grooving Head, SL, Series: T-Max® Q-Cut, 0.9842 in Minimum Workpiece Dia, 1.7716 in Maximum Workpiece Dia, Left Hand Cutting, Steel
Catalog Number 5764570 Clamp Screw 3212012-310 Coolant Nozzle 5691041-02 Coolant Supply Internal Country of Origin SE Finish T-Max® Q-Cut Gross Weight Per Pack 0.1300 lb Key 5680043-15 Material Steel Max Depth 0 Maximum Workpiece Diameter 1.7716 in Minimum Workpiece Diameter 0.9842 in Series T-Max® Q-Cut Type SL UPC 11 69826231160 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Blade Height T-Max® Q-Cut Blade Thickness Steel Blade Width Left Hand Cutting Direction Left Hand Groove Width SL Screw mounted machine side adaptive interface 90 deg body workpiece side 10.693 mm D maximum cutting Axial concentric coolant entry 10 bar coolant Radial coolant exit 32 mm Dia connection 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 18 mm L functional 15.5 mm length to cutting item reference point N151.3-500-40- 7G compatible insert 21.8 mm OAL 18 mm overhang 3.5 Nm torque 570-xxR/L151.3..A tool style 43.1 mm W functional ANSI Code: 570-32L151.3-025A40
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5764570 |
| Clamp Screw | 3212012-310 |
| Coolant Nozzle | 5691041-02 |
| Coolant Supply | Internal |
| Country of Origin | SE |
| Finish | T-Max® Q-Cut |
| Gross Weight Per Pack | 0.1300 lb |
| Key | 5680043-15 |
| Material | Steel |
| Max Depth | 0 |
| Maximum Workpiece Diameter | 1.7716 in |
| Minimum Workpiece Diameter | 0.9842 in |
| Series | T-Max® Q-Cut |
| Type | SL |
| UPC 11 | 69826231160 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Blade Height | T-Max® Q-Cut |
| Blade Thickness | Steel |
| Blade Width | Left Hand |
| Cutting Direction | Left Hand |
| Groove Width | SL |
| Screw mounted machine side adaptive interface |
| 90 deg body workpiece side |
| 10.693 mm D maximum cutting |
| Axial concentric coolant entry |
| 10 bar coolant |
| Radial coolant exit |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 18 mm L functional |
| 15.5 mm length to cutting item reference point |
| N151.3-500-40- 7G compatible insert |
| 21.8 mm OAL |
| 18 mm overhang |
| 3.5 Nm torque |
| 570-xxR/L151.3..A tool style |
| 43.1 mm W functional |
| ANSI Code: 570-32L151.3-025A40 |
