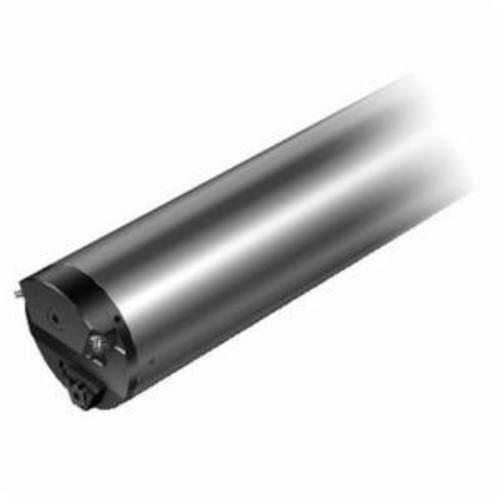

Sandvik Coromant 5764560 Cylindrical Shank to CoroTurn® SL Quick-Change Dampened Boring Bar Adapter, 64.4811 in OAL, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant 5764560 Cylindrical Shank to CoroTurn® SL Quick-Change Dampened Boring Bar Adapter, 64.4811 in OAL, Neutral
SKU1252014
MFGR #5764560
Your Cost: $87,431.30/ea
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank to CoroTurn® SL Quick-Change Dampened, 64.4811 in Overall Length, 3.937 in Shank Dia, Cylindrical Shank, Neutral Cutting, Steel
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank to CoroTurn® SL Quick-Change Dampened, 64.4811 in Overall Length, 3.937 in Shank Dia, Cylindrical Shank, Neutral Cutting, Steel
Alternate Catalog Number 570-3C 100 1560 CR Catalog Number 5764560 Country of Origin NO Cutting Direction Neutral Finish Cylindrical Shank to CoroTurn® SL Quick Change, Dampened Gross Weight Per Pack 223.74000 lb Insert Screw 1637.825 mm Item Group 430 Material Steel Maximum Bore Depth 5762684 Clamp, 5762755 Clamp Set, 5762920 Screw Set, 5764304 Nozzle, 6563381 Screw, 6764666 Key Adaptor and 6795235 Pin Maximum Bore Diameter 1637.825 mm Minimum Bore Diameter Neutral Overall Length 64.4811 in Shank Type Cylindrical Type Cylindrical Shank to CoroTurn® SL Quick-Change Dampened UPC 11 69826235674 Width Offset 100 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Series Cylindrical Shank Diameter 3.937 in Cylindrical shank machine side adaptive interface without clamping Quick change workpiece side adaptive interface 0 deg body workpiece side 100 mm Dia body 0 deg body half taper Axial concentric coolant entry G3/4 coolant entry thread 50 bar coolant Axial concentric coolant exit 80 mm Dia connection machine side 1155 mm L body 1560 mm L functional 1560 mm L protruding 955 - 1155 mm overhang 50 Nm torque 570-3C..CR (QC) tool style 20 life cycle state ANSI Code: 570-3C 100 1560 CR ISO Code: 570-3C 100 1560 CR
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 570-3C 100 1560 CR |
| Catalog Number | 5764560 |
| Country of Origin | NO |
| Cutting Direction | Neutral |
| Finish | Cylindrical Shank to CoroTurn® SL Quick Change, Dampened |
| Gross Weight Per Pack | 223.74000 lb |
| Insert Screw | 1637.825 mm |
| Item Group | 430 |
| Material | Steel |
| Maximum Bore Depth | 5762684 Clamp, 5762755 Clamp Set, 5762920 Screw Set, 5764304 Nozzle, 6563381 Screw, 6764666 Key Adaptor and 6795235 Pin |
| Maximum Bore Diameter | 1637.825 mm |
| Minimum Bore Diameter | Neutral |
| Overall Length | 64.4811 in |
| Shank Type | Cylindrical |
| Type | Cylindrical Shank to CoroTurn® SL Quick-Change Dampened |
| UPC 11 | 69826235674 |
| Width Offset | 100 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Series | Cylindrical |
| Shank Diameter | 3.937 in |
| Cylindrical shank machine side adaptive interface without clamping |
| Quick change workpiece side adaptive interface |
| 0 deg body workpiece side |
| 100 mm Dia body |
| 0 deg body half taper |
| Axial concentric coolant entry |
| G3/4 coolant entry thread |
| 50 bar coolant |
| Axial concentric coolant exit |
| 80 mm Dia connection machine side |
| 1155 mm L body |
| 1560 mm L functional |
| 1560 mm L protruding |
| 955 - 1155 mm overhang |
| 50 Nm torque |
| 570-3C..CR (QC) tool style |
| 20 life cycle state |
| ANSI Code: 570-3C 100 1560 CR |
| ISO Code: 570-3C 100 1560 CR |
